Pressed Steel Radiators (PSR)
Our flagship product — corrugated pressed-steel radiators for transformer oil cooling, built to your drawing.
Pressed Steel Radiator Manufacturer · Jaipur, Rajasthan
Pressed Steel Transformer Radiators, Built to Your Drawing
Shree Shyam Enterprises is a trusted pressed steel radiator (PSR) manufacturer for transformer cooling — every panel formed, welded, pressure-tested and painted in-house at our own Jaipur factory, with the precision and quality your project deserves, built to your exact size and specification.
Who We Are
Transformer Radiator Manufacturing
Shree Shyam Enterprises is a trusted name in pressed steel radiator (PSR) manufacturing for transformer cooling, built on precision engineering and an unwavering commitment to quality, based in Jaipur, Rajasthan. Every panel, complete assembly and multi-assembly bank is fabricated in-house by a skilled team, to the exact dimensions and engineering drawings our customers trust us with.
- Pressed steel radiator panels, assemblies and banks in 48/58/75/90 mm OD sizes
- Products manufactured according to customer requirements and submitted specifications
- Engineering drawing-based manufacturing for custom and non-standard sizes
- Every radiator pressure-tested with air and oil at 2.5 kg/cm² before dispatch
Products
Our Transformer Radiator Products
Pressed steel radiators, assemblies and banks — manufactured to your drawing and specification.
Custom / Non-Standard Transformer Radiators
Radiators built to non-standard dimensions and construction, entirely from customer drawings.
Multi-Panel Radiator Assemblies & Banks

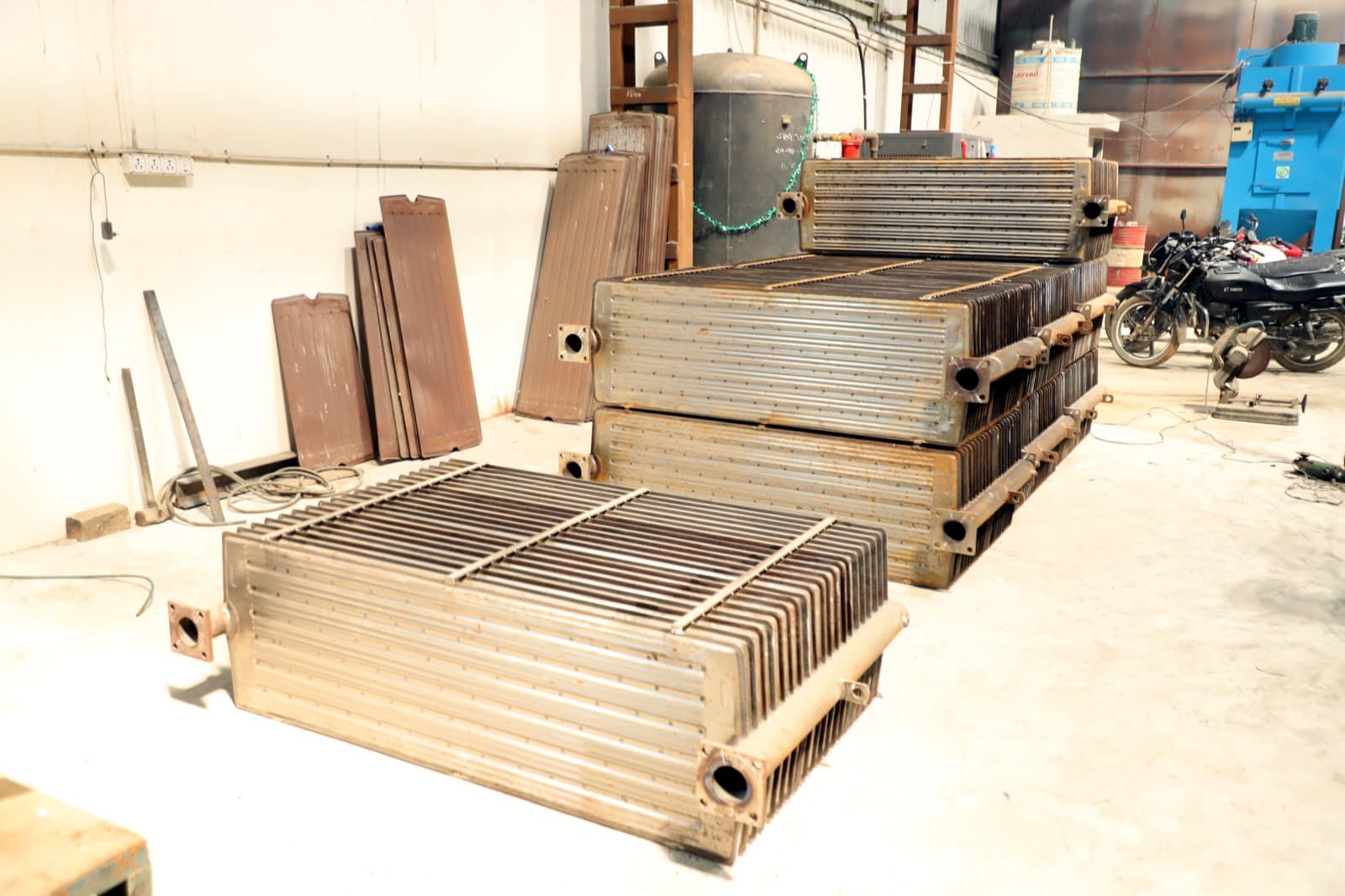

Complete radiators assembled from multiple panels, and radiator banks for larger cooling loads.
Radiator Panels (Individual Elements)
Individual corrugated radiator panels, supplied loose for assembly, repair or replacement.
Why Choose Us
Built for Industrial Requirements
01
Pressure-Tested Every Time
Every radiator is tested with air and oil at 2.5 kg/cm² — above its 2 kg/cm² rated operating pressure — before it leaves the factory.
02
Built to Your Drawing
Panel size, OD, header length and flange specification are all set by your drawing or stated requirement — not a fixed catalogue.
03
In-House, End to End
Panel forming, welding, testing and painting all happen on our own factory floor in Jaipur, so quality checks travel with the unit at every stage.
04
Full Panel Size Range
48 mm, 58 mm, 75 mm and 90 mm OD panel types manufactured in-house, from single panels to complete multi-assembly banks.
05
Established Team
A team of around 90 people, including a dedicated 4-member quality and engineering team, on a 2,800 sq. ft. production floor.
06
Direct B2B Supply
Supplying transformer manufacturers, OEMs and industrial buyers directly, with drawings and quotations handled by our own sales team.
Manufacturing
From Fabrication to Finished Radiator
Our nine-stage production flow, from raw steel to a packed, dispatch-ready radiator.
- 01
Raw Material

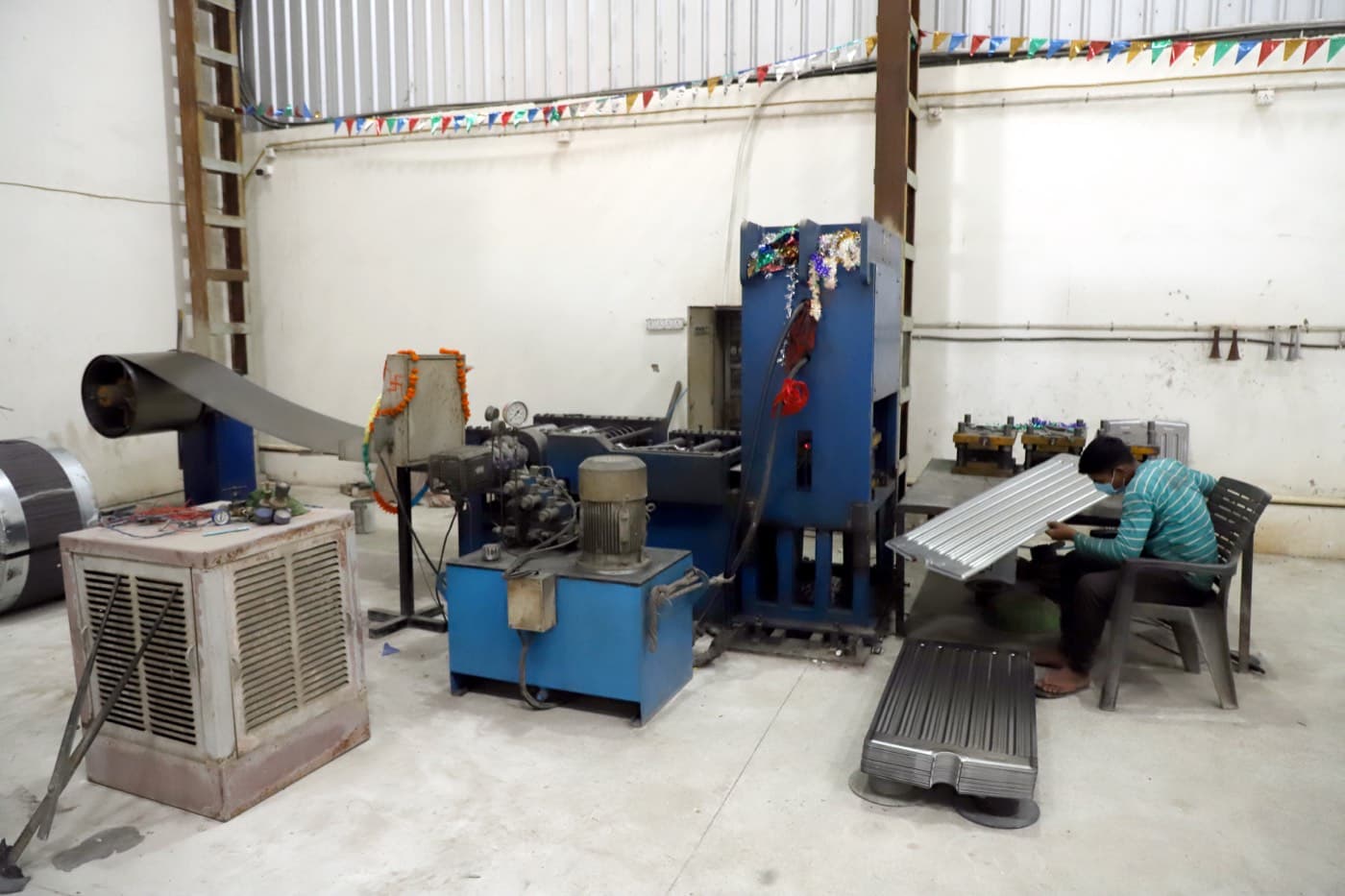

Cold-rolled low-carbon steel (CRCA) sheet and mild-steel pipe are received and staged for panel pressing and header fabrication.
- 02
Cutting / Forming

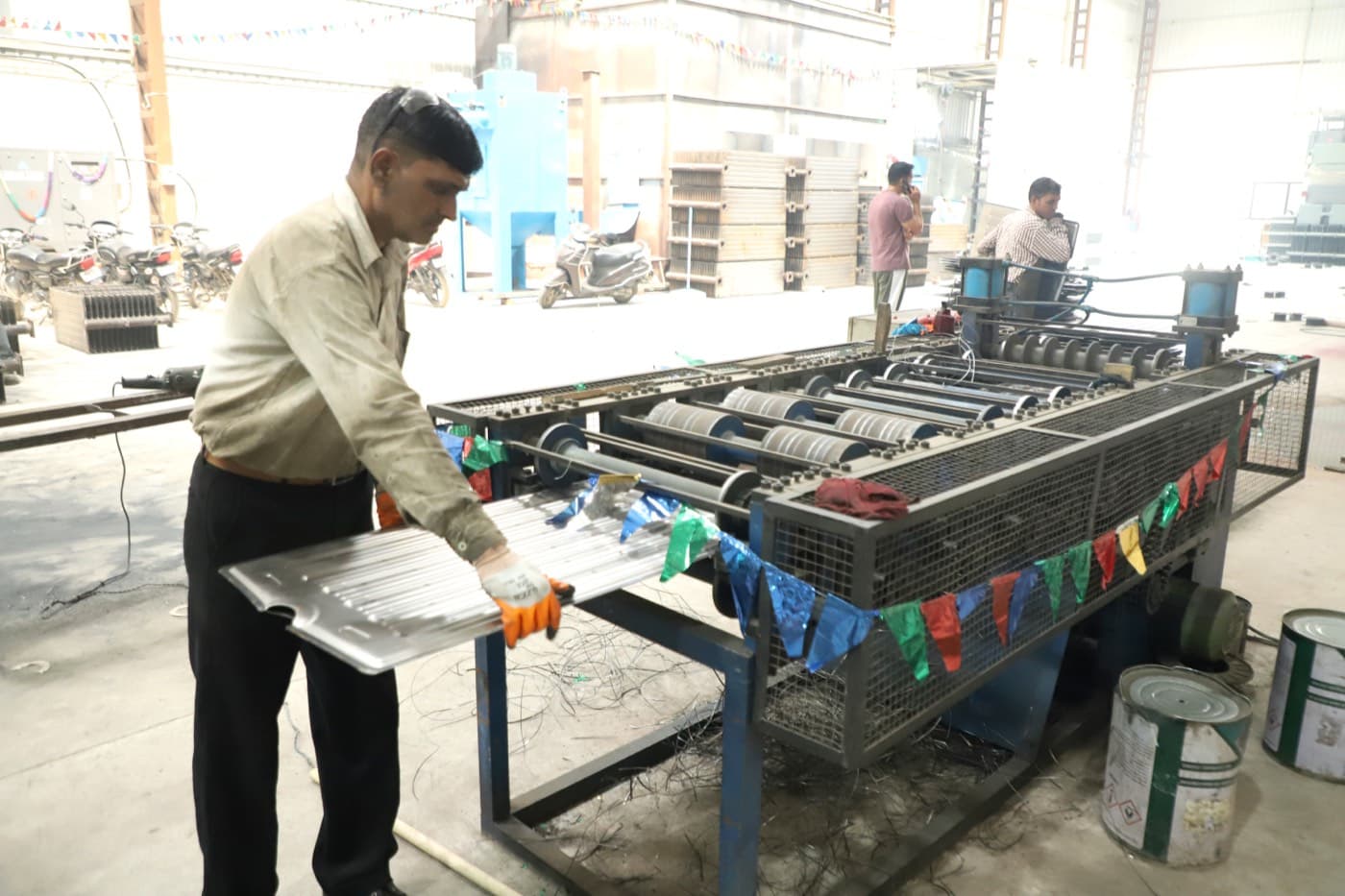

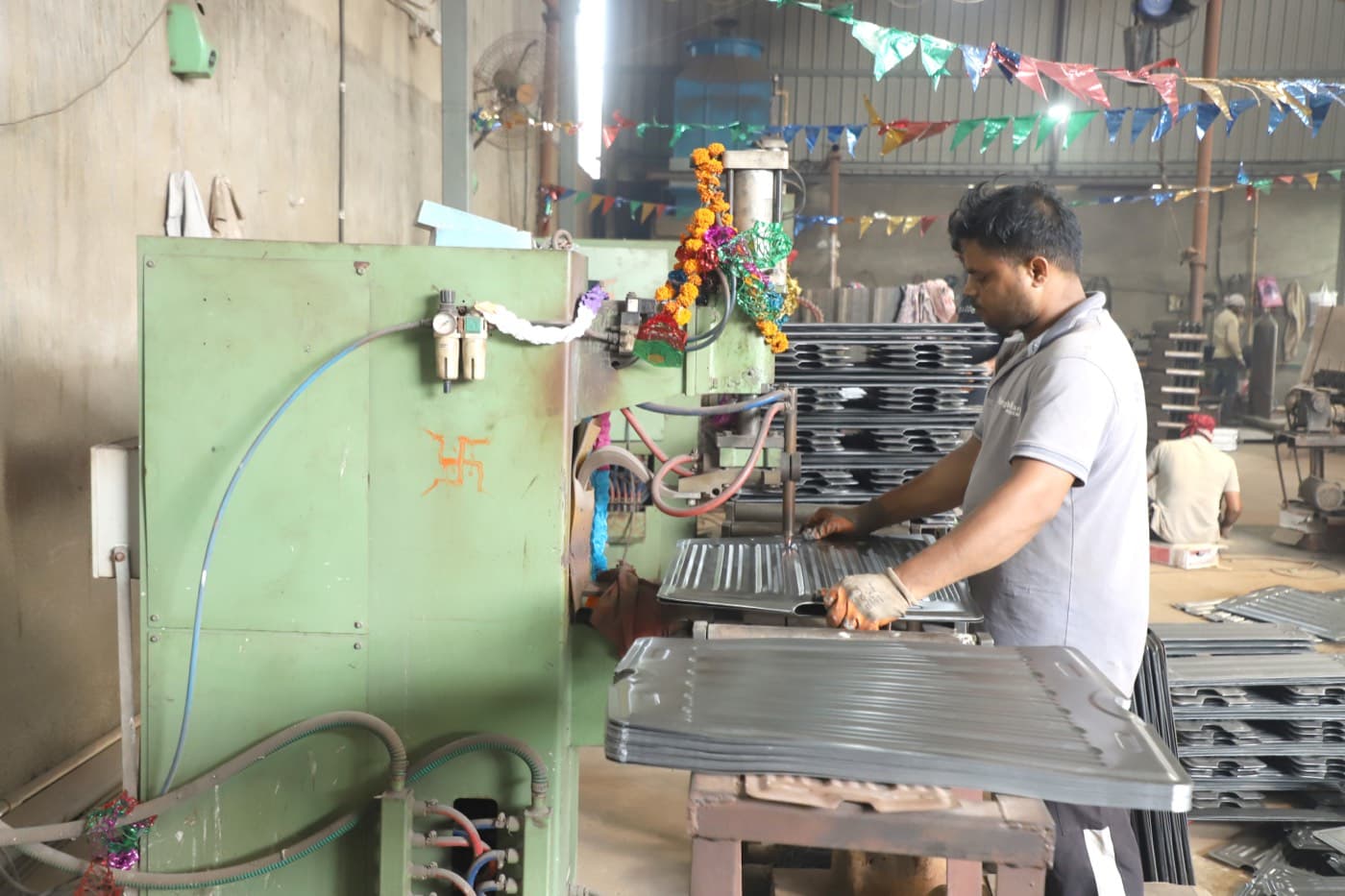

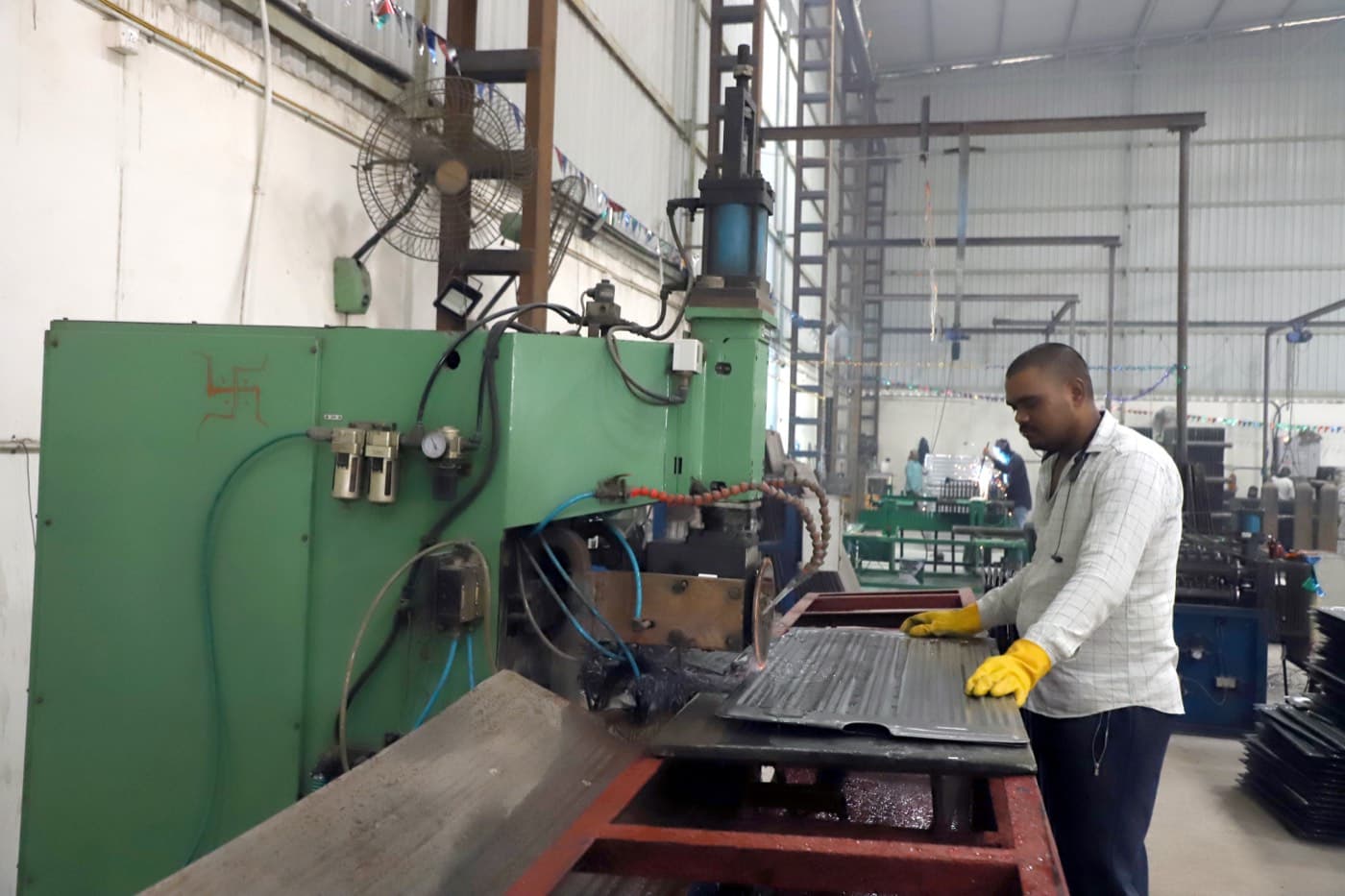

Sheet steel is corrugated and pressed into radiator fins on our roll-forming and spot-seam lines, to 0.8–0.9 mm panel thickness.
- 03
Fabrication

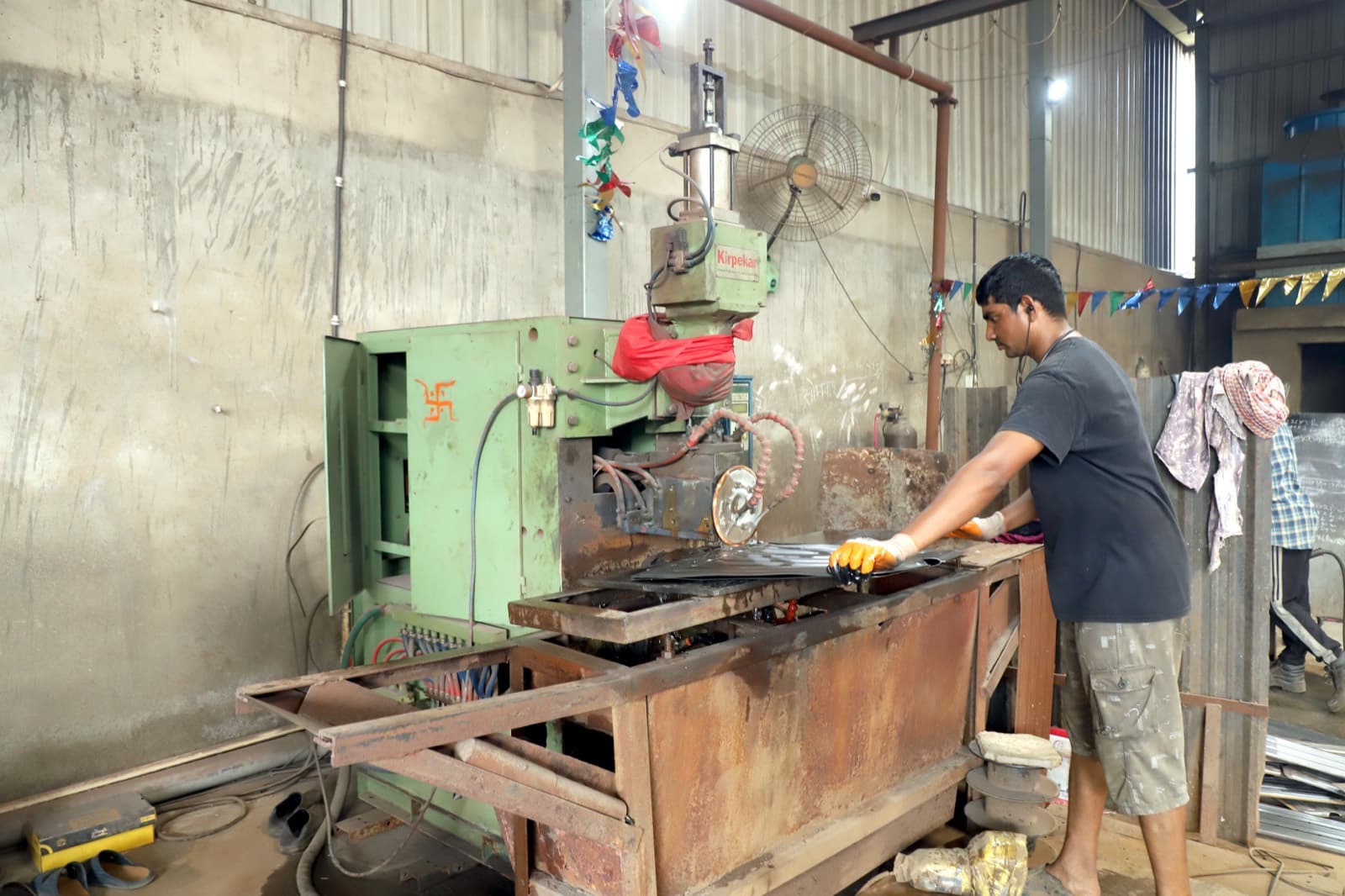

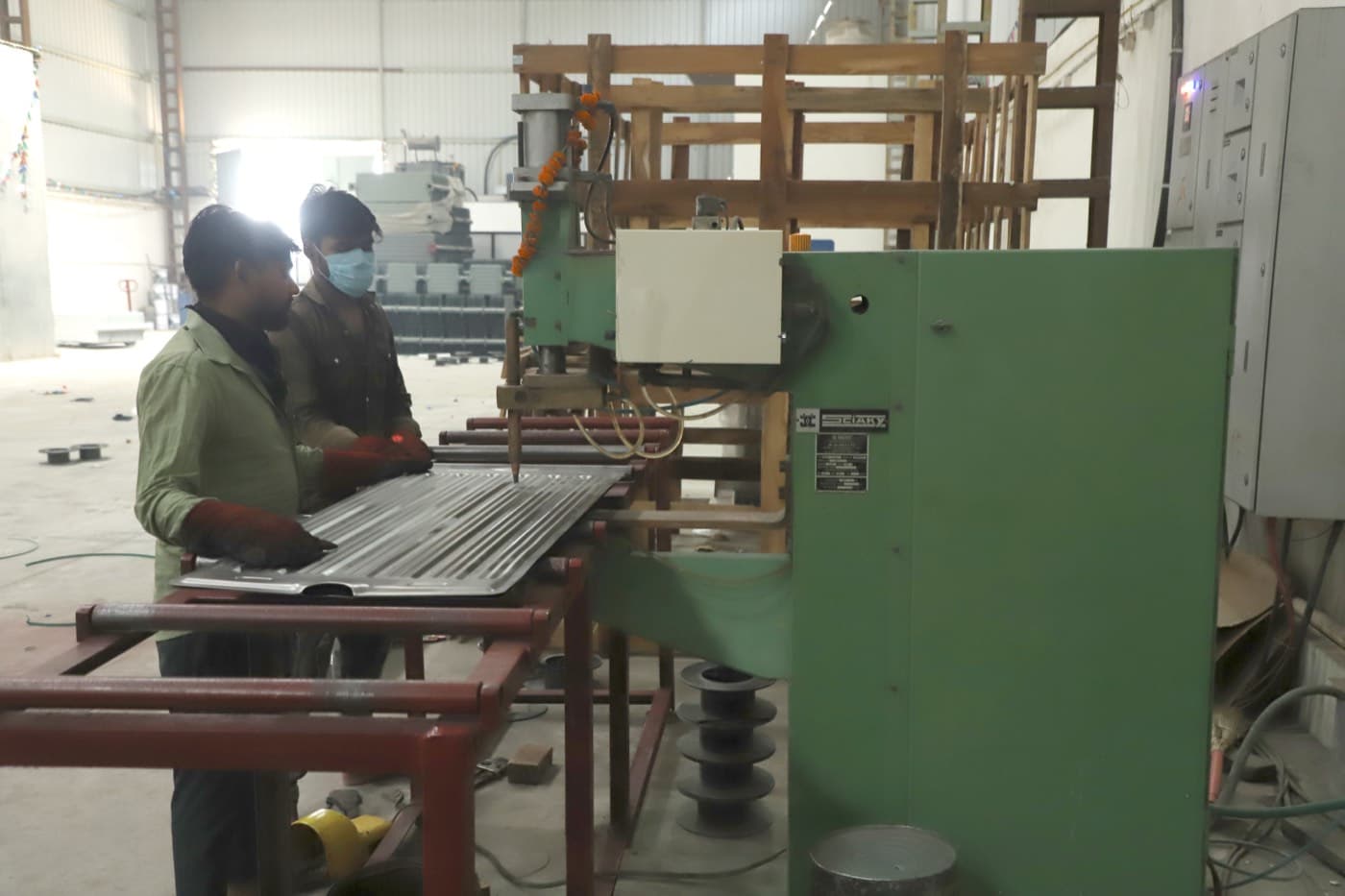

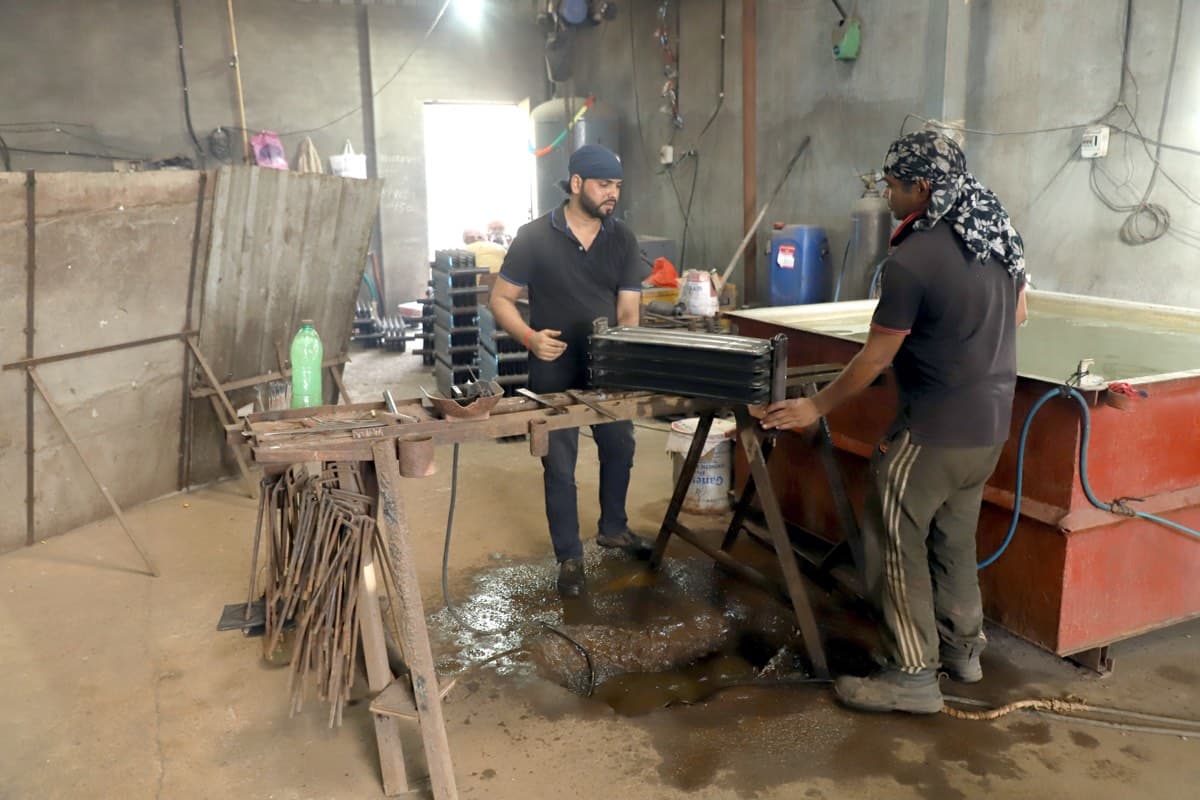

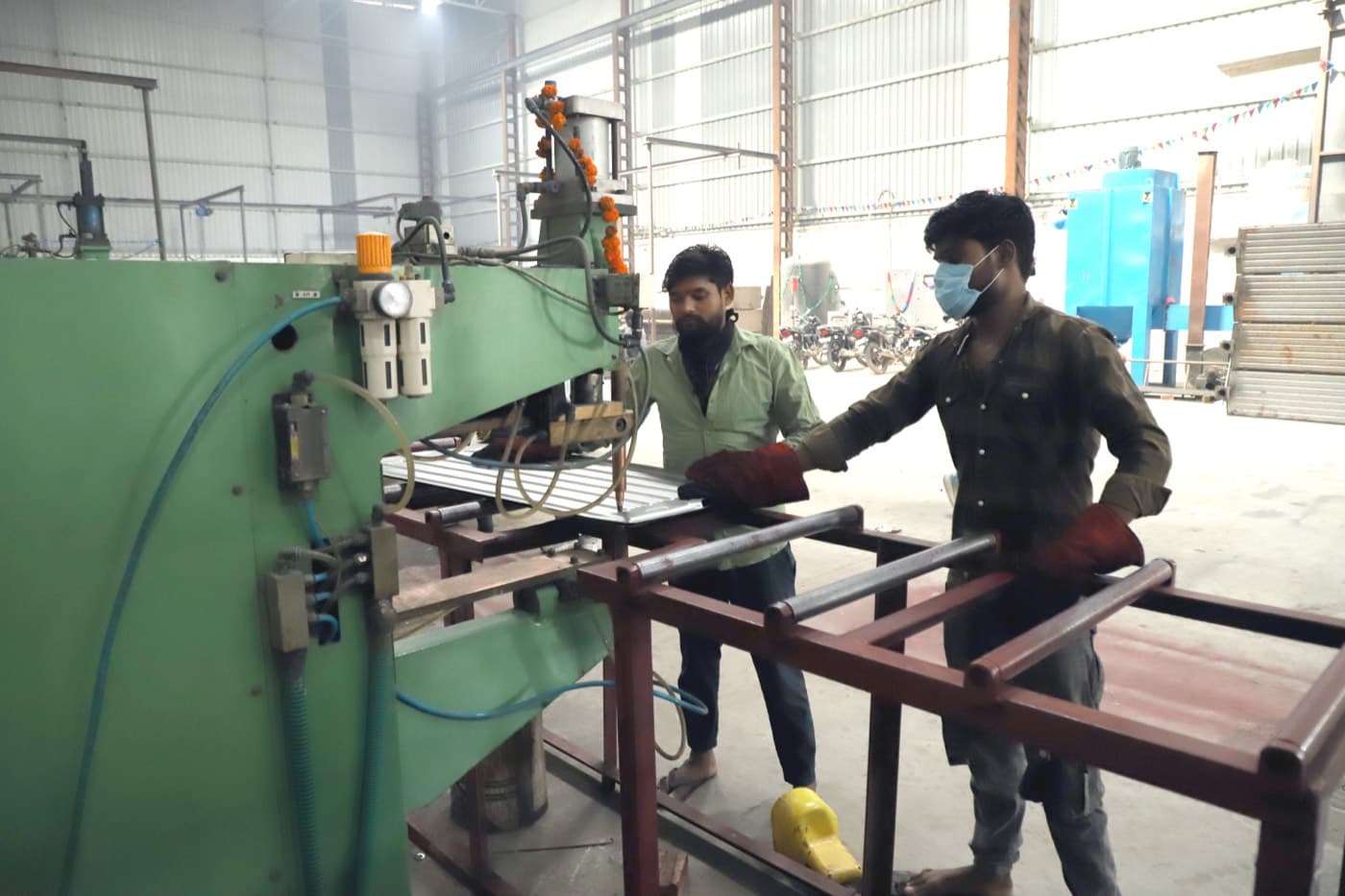

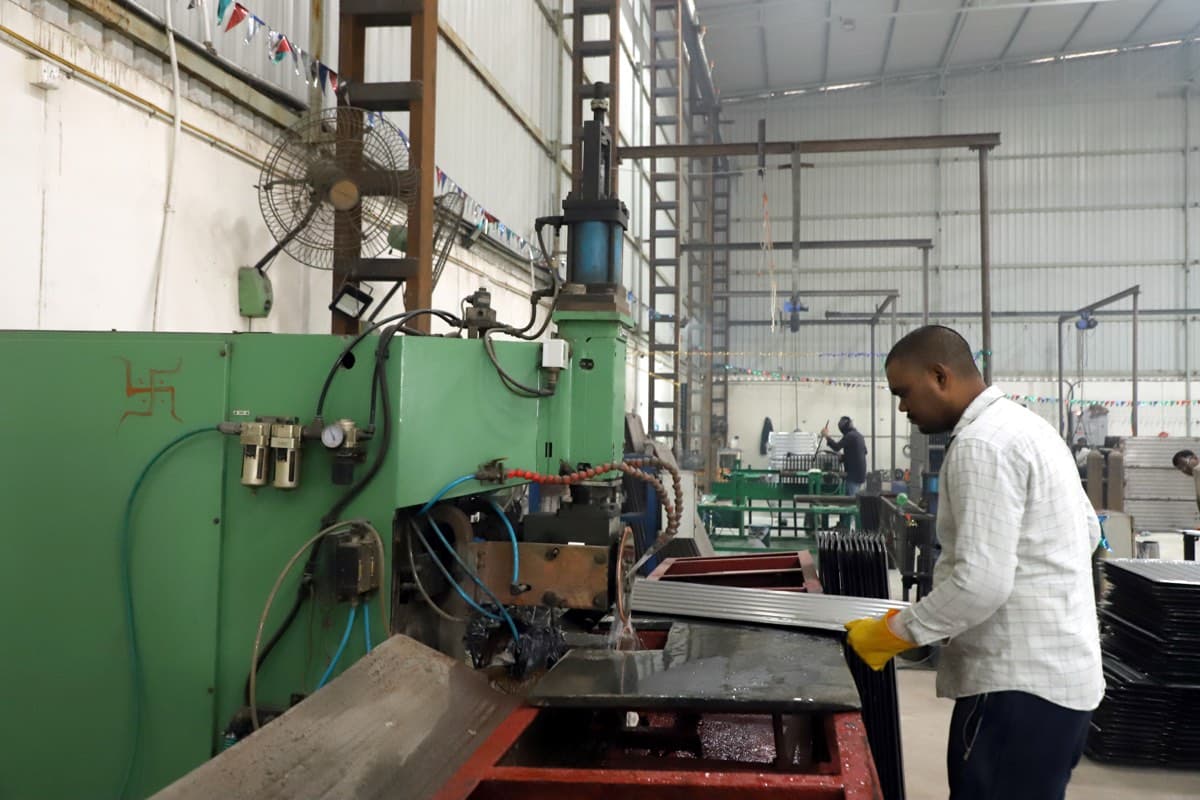

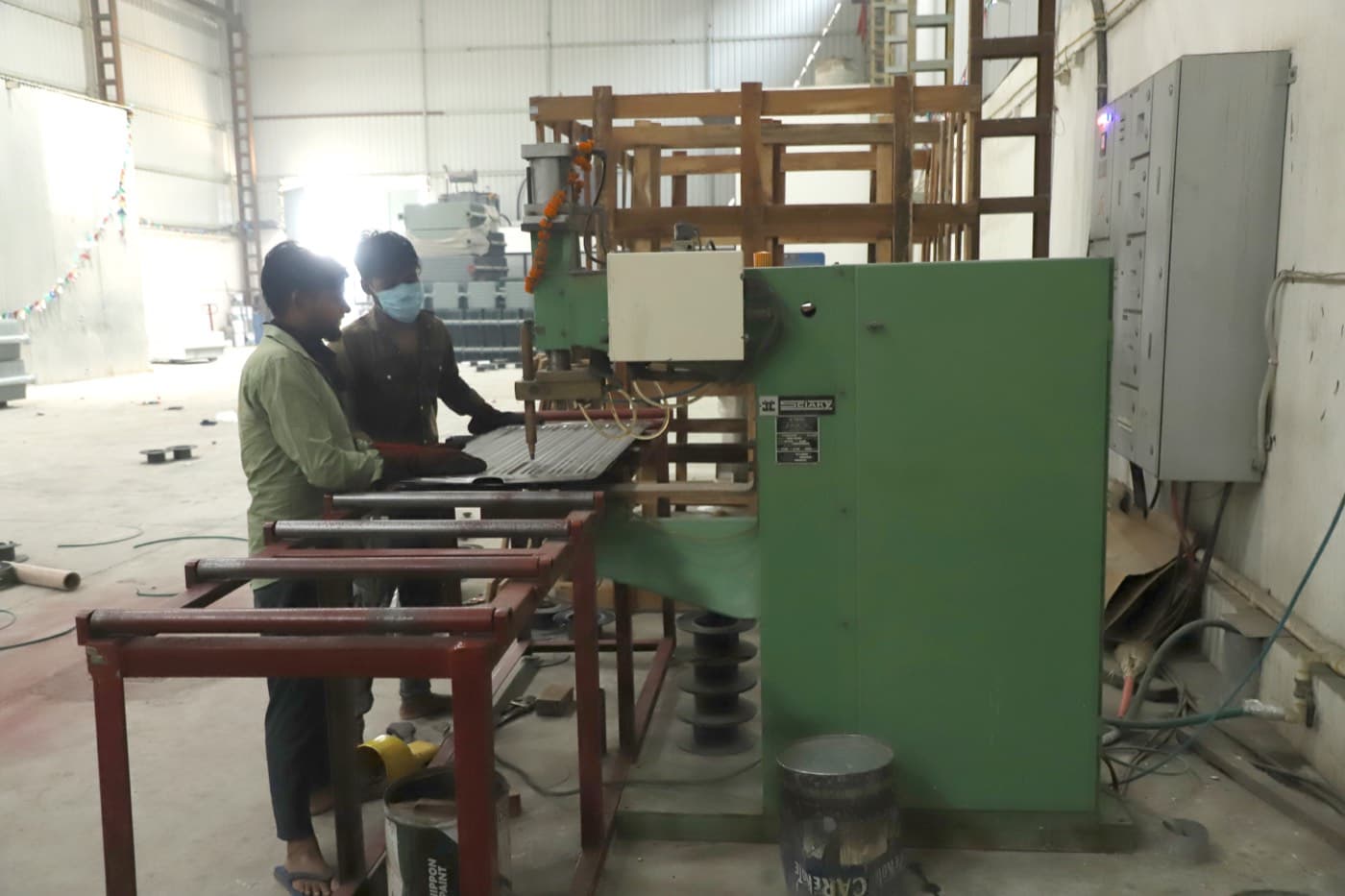

Formed panels are pressed and seam-welded on our spot-seam machine, then trimmed and checked for consistent profile before moving to assembly.
- 04

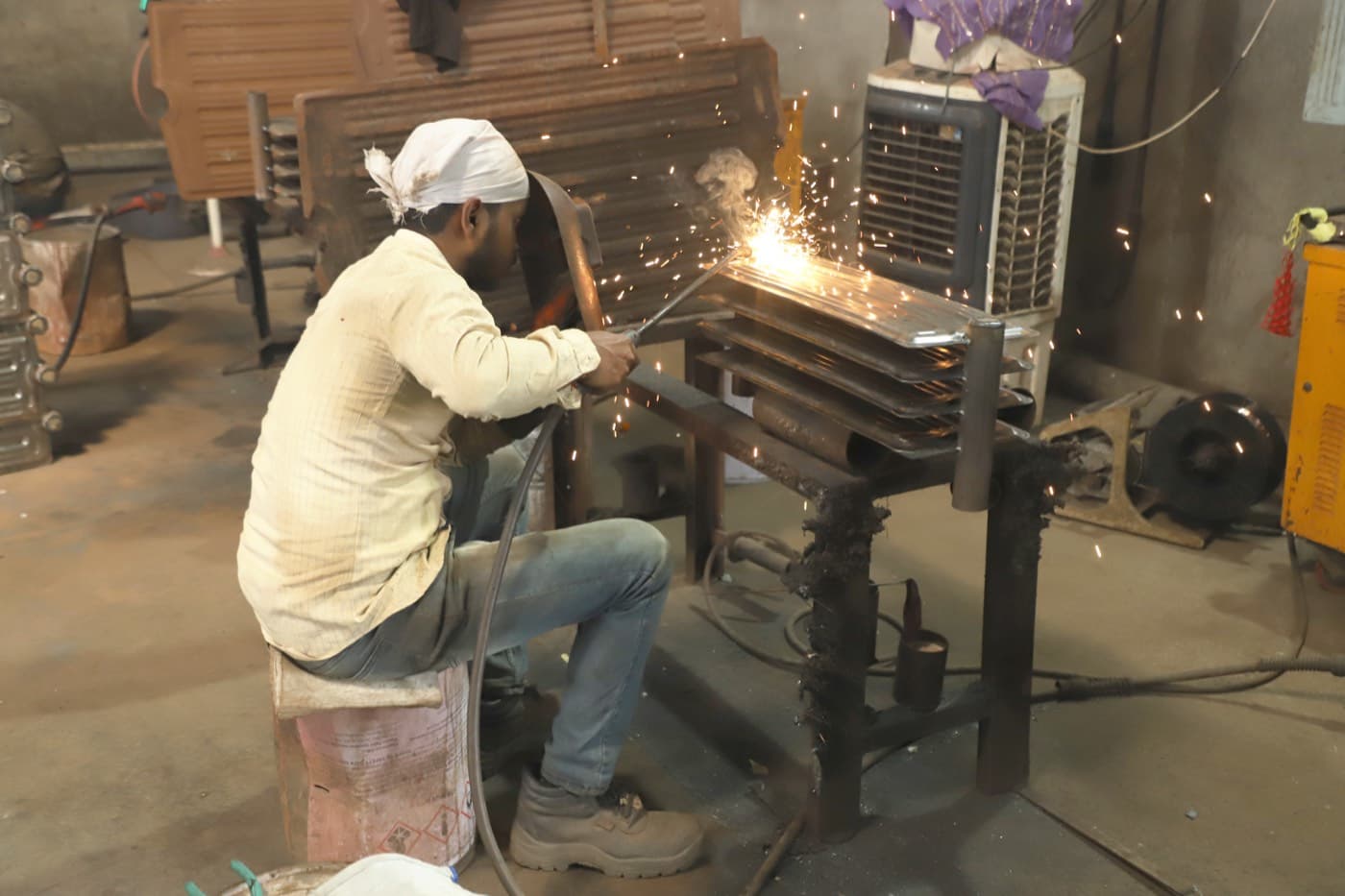

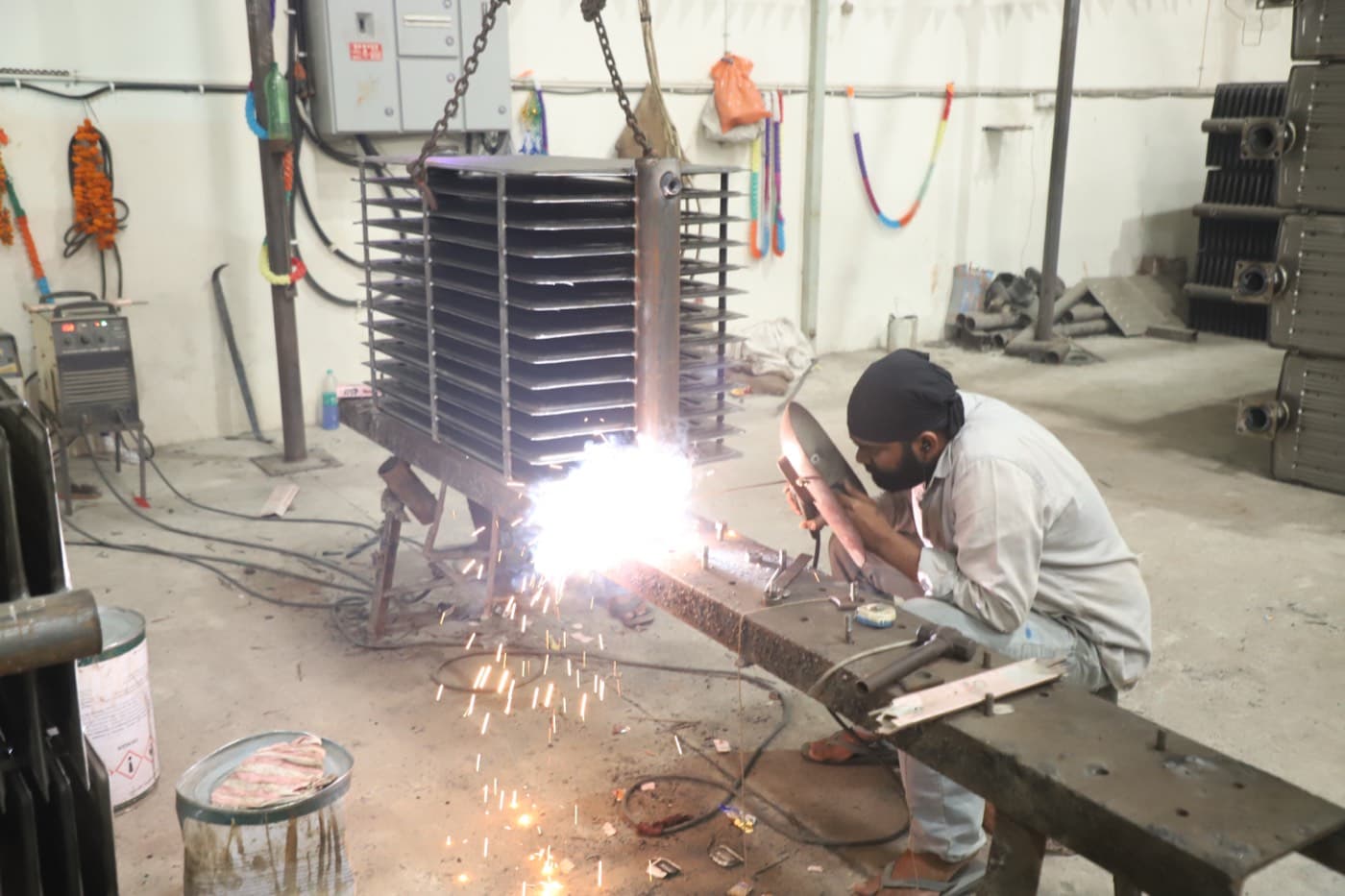

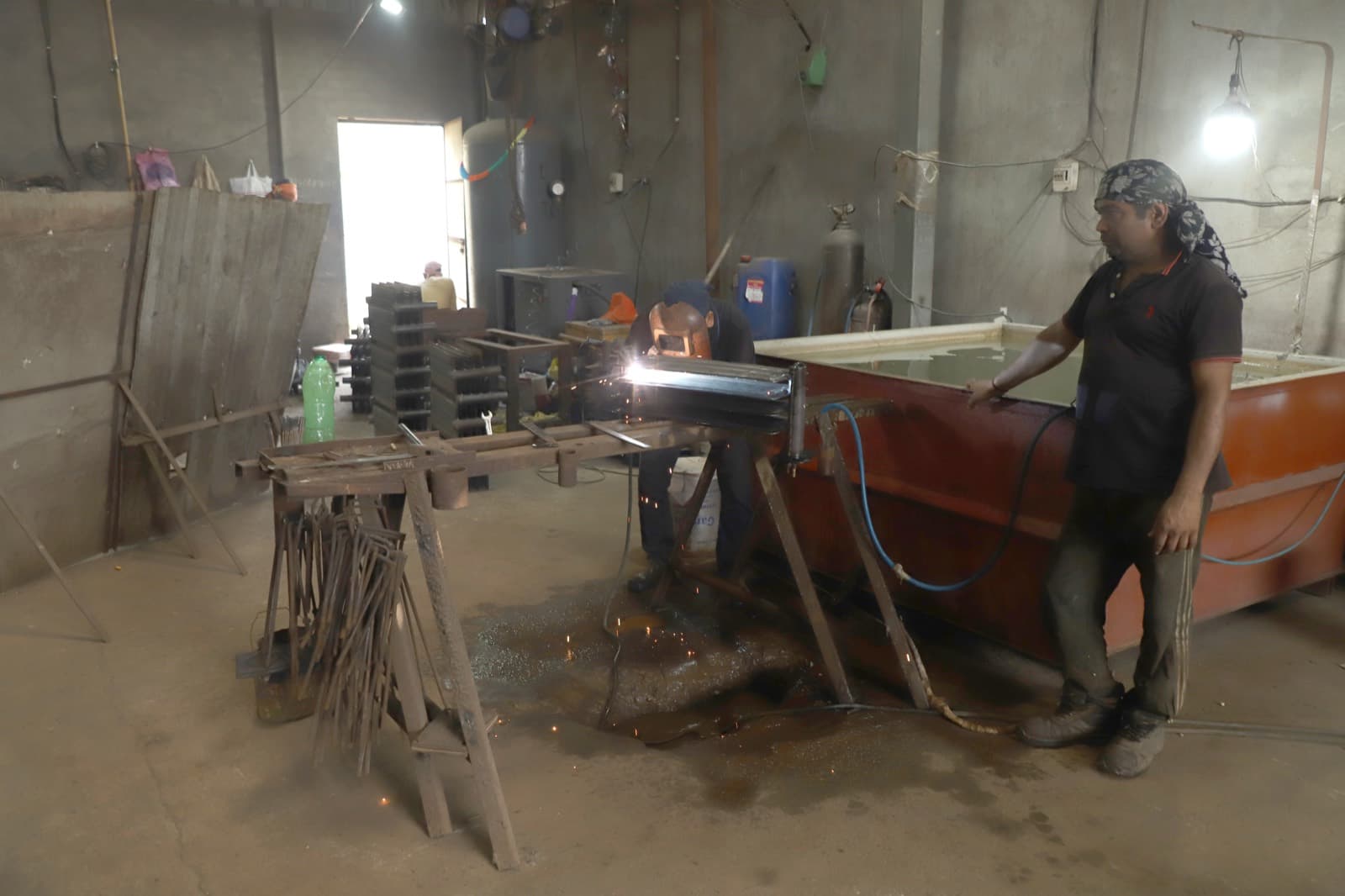

Welding

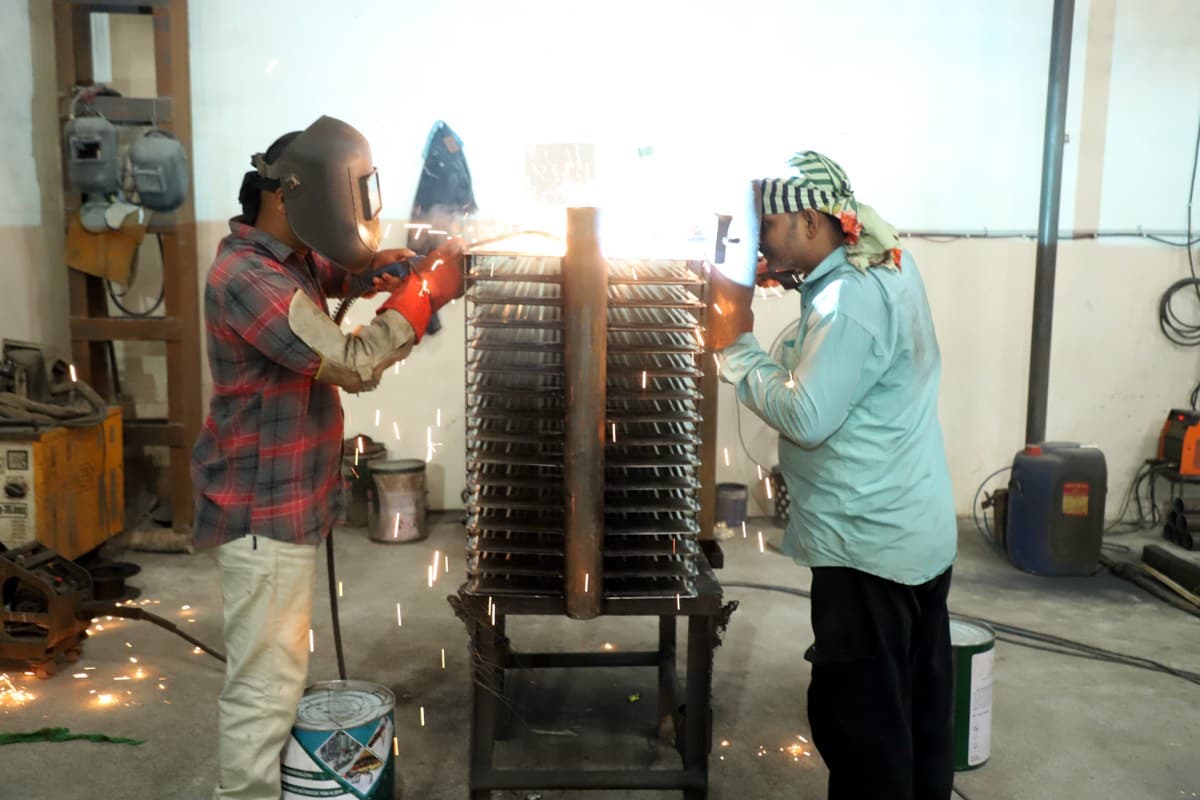

Panels are welded onto mild-steel top and bottom headers to build a complete radiator element, sized to the OD (48/58/75/90 mm) and length called for in the order.
- 05
Assembly

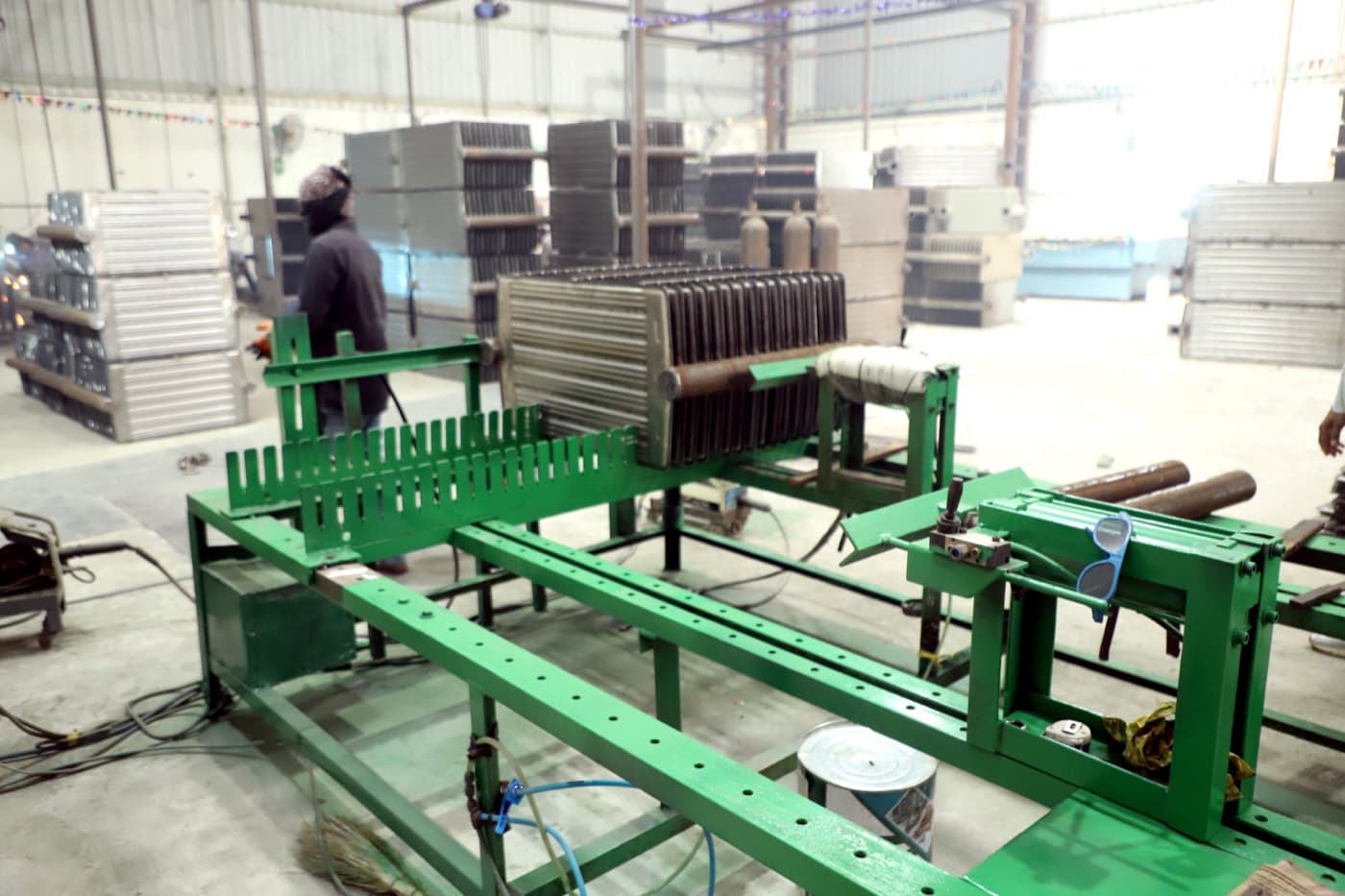

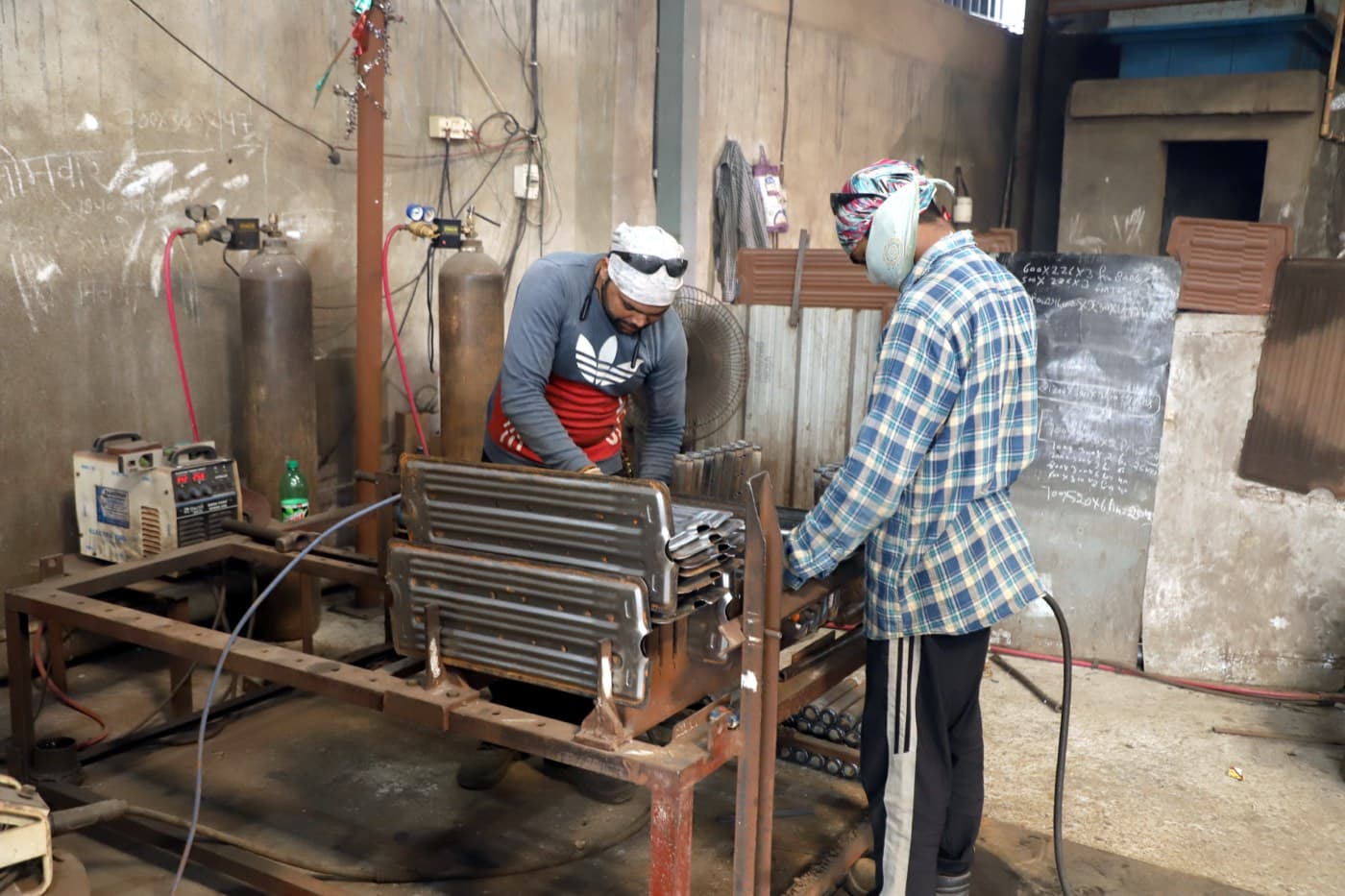

Individual radiator elements are grouped into the finished assembly or bank configuration, with flanges (150 x 150 mm, 12/16/20 mm) fitted per the customer's drawing.
- 06
Inspection

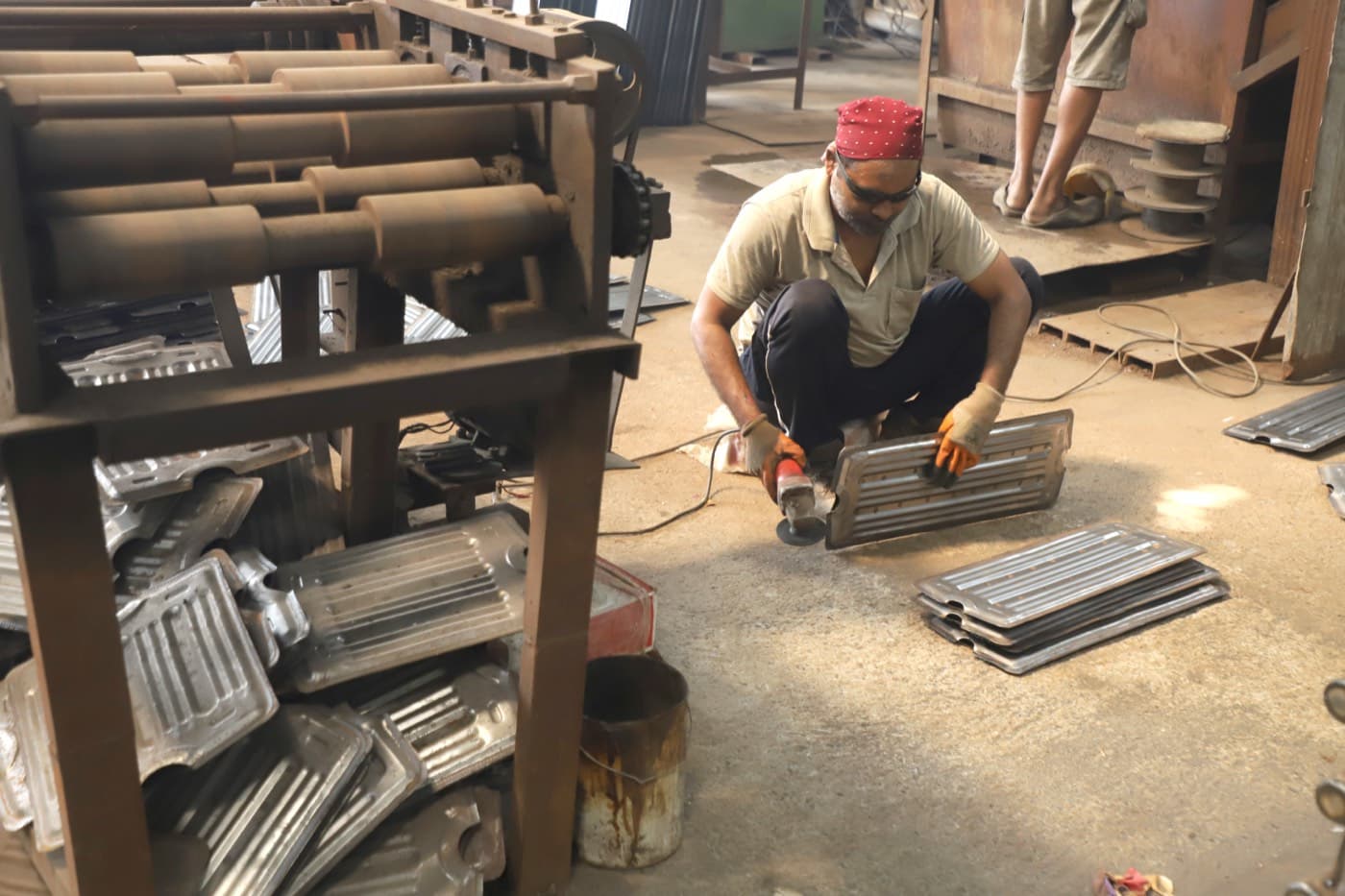

Each assembly is visually and dimensionally checked — panel alignment, weld seams and flange fit — before it goes for testing.
- 07

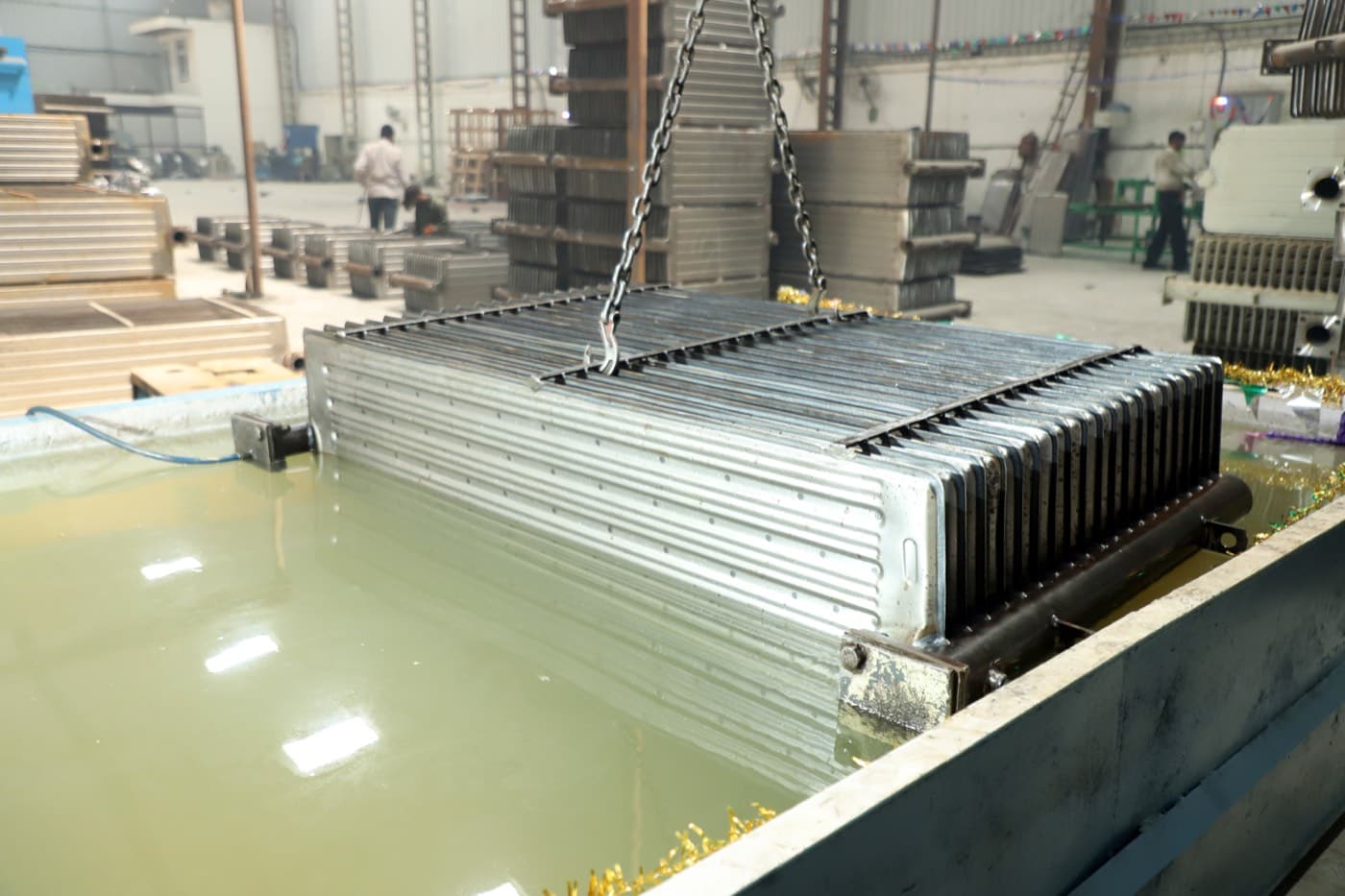

Testing

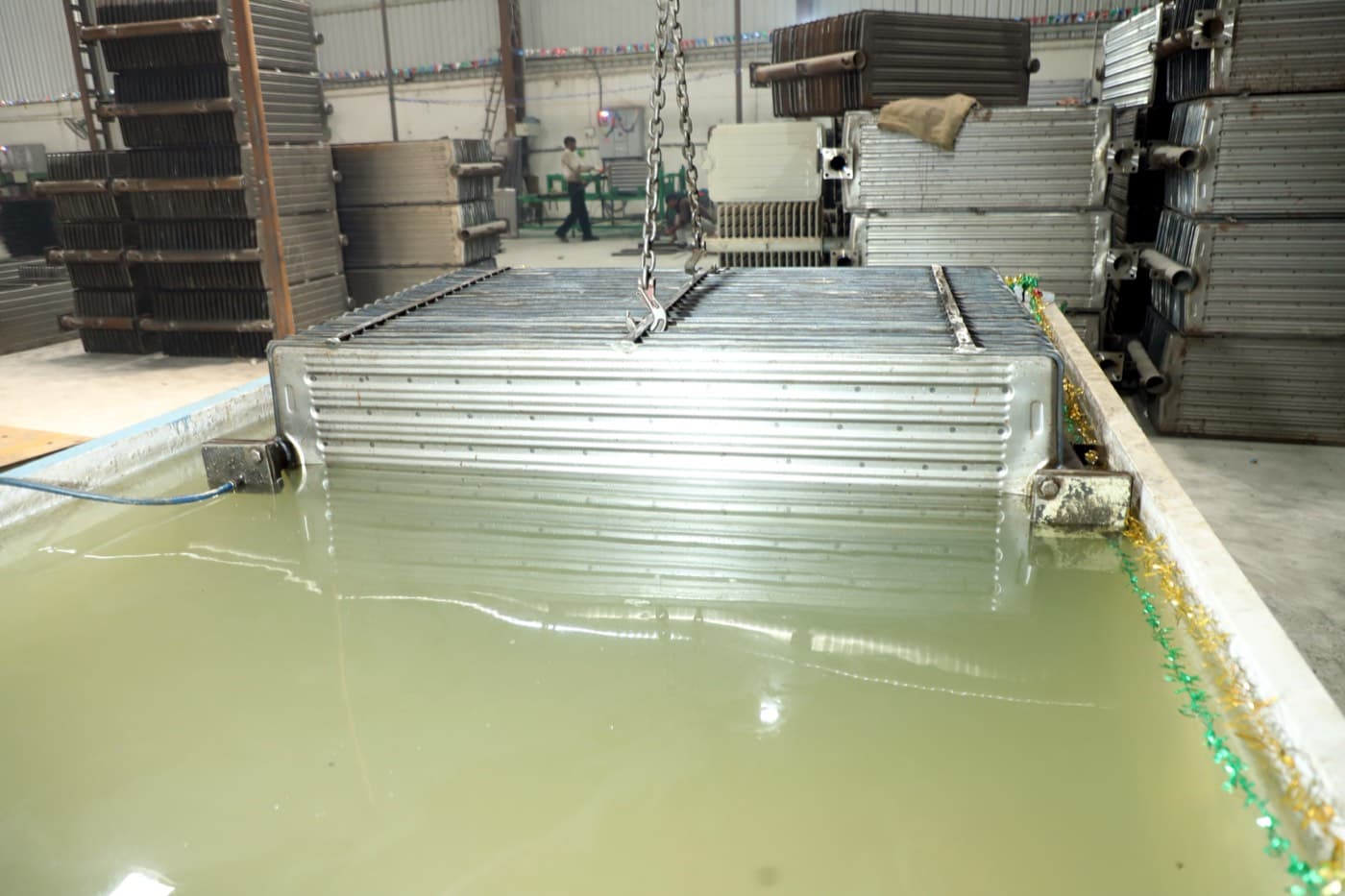

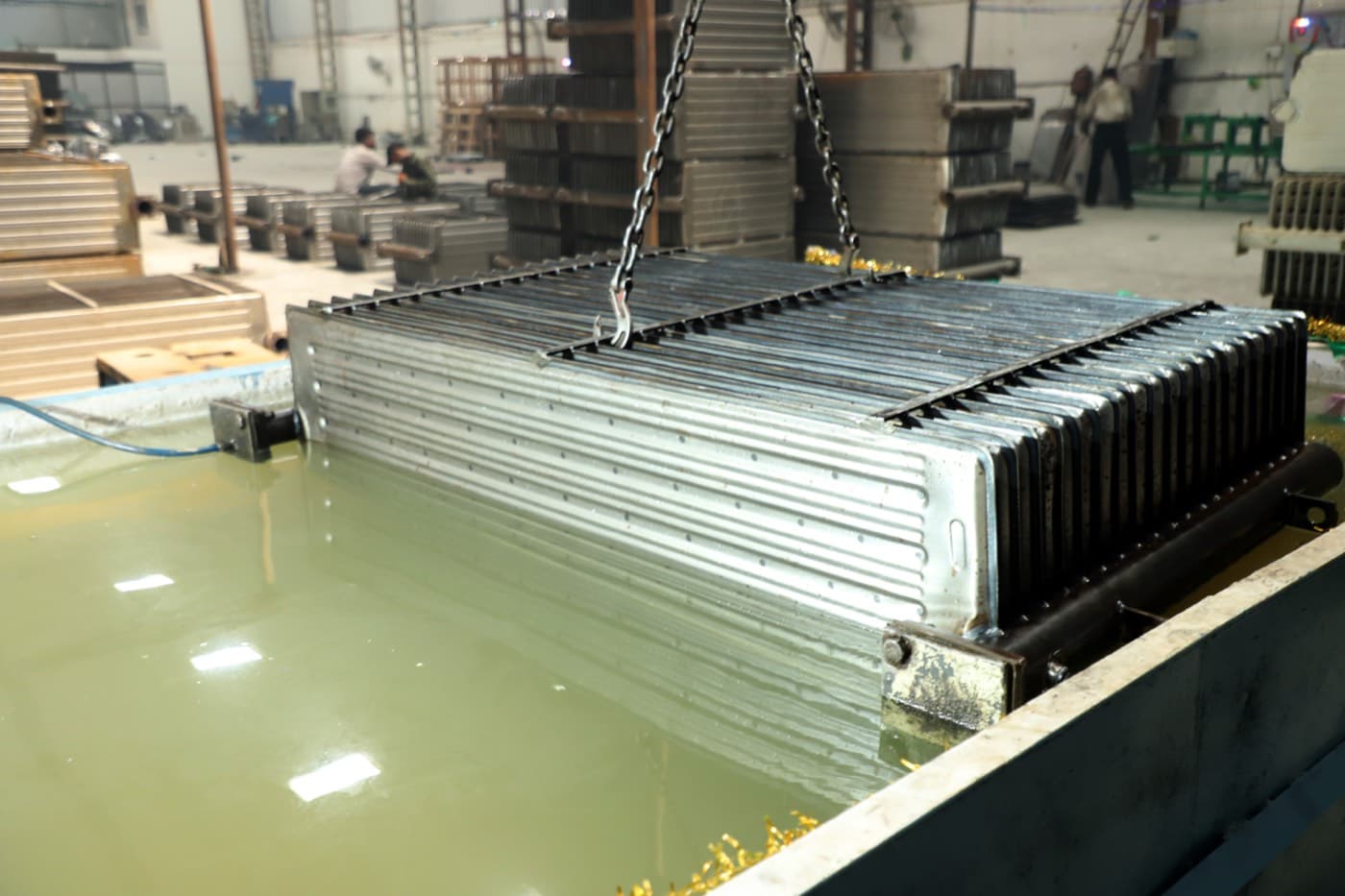

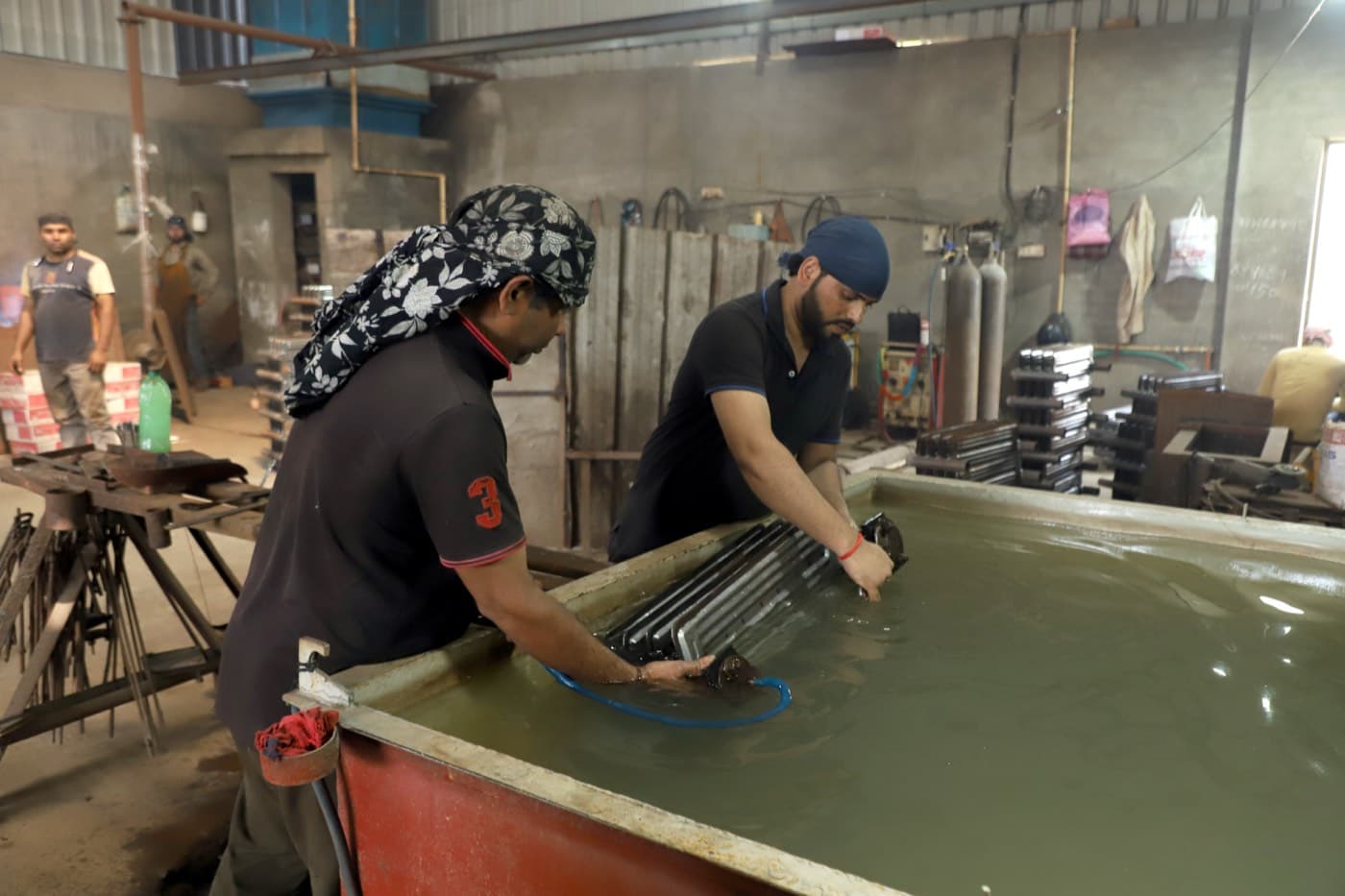

Radiators are submerged and pressure-tested with air and oil at 2.5 kg/cm² — above the 2 kg/cm² maximum operating pressure — to check every weld seam for leaks before it is approved for finishing.
- 08

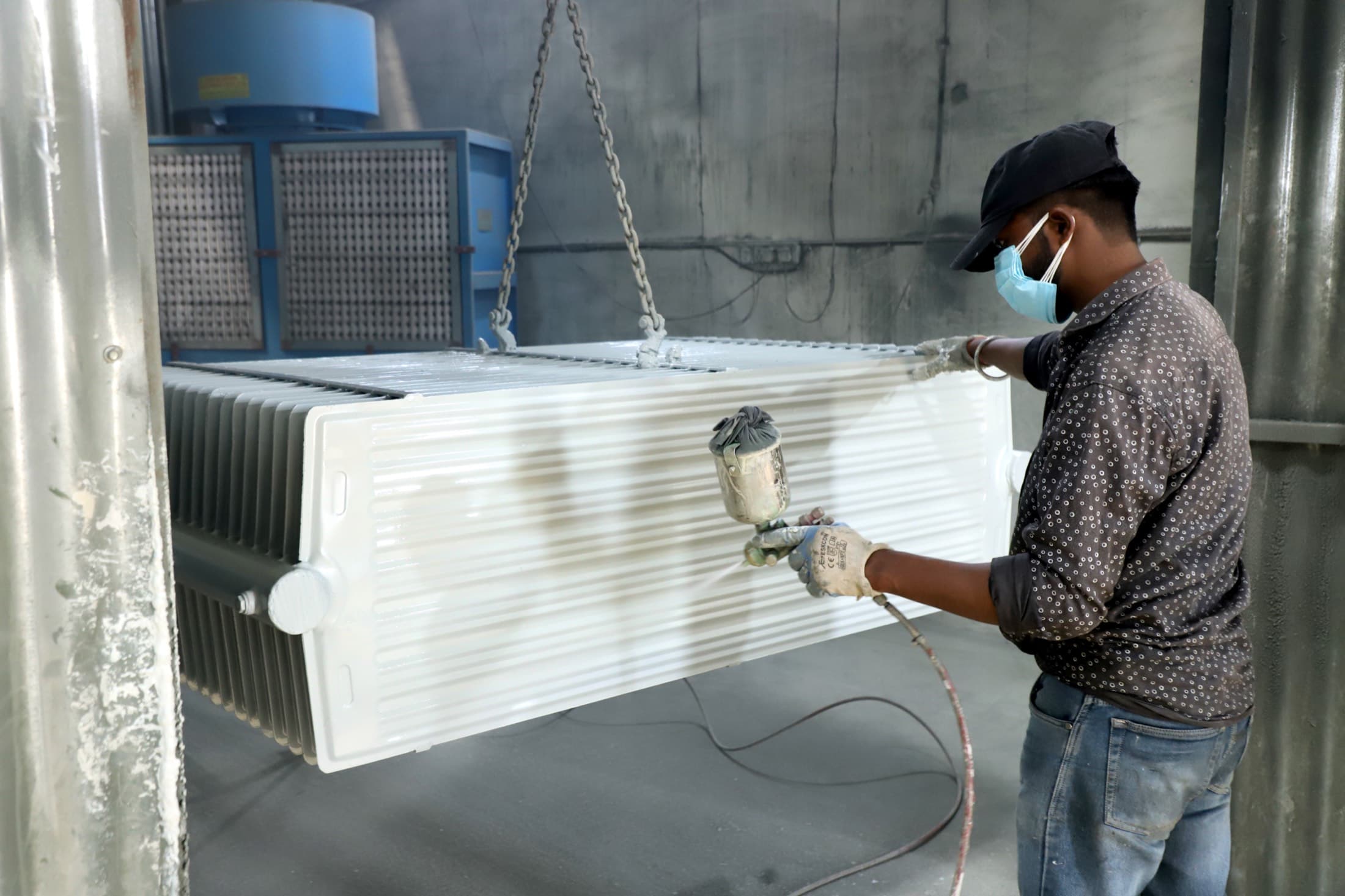

Finishing

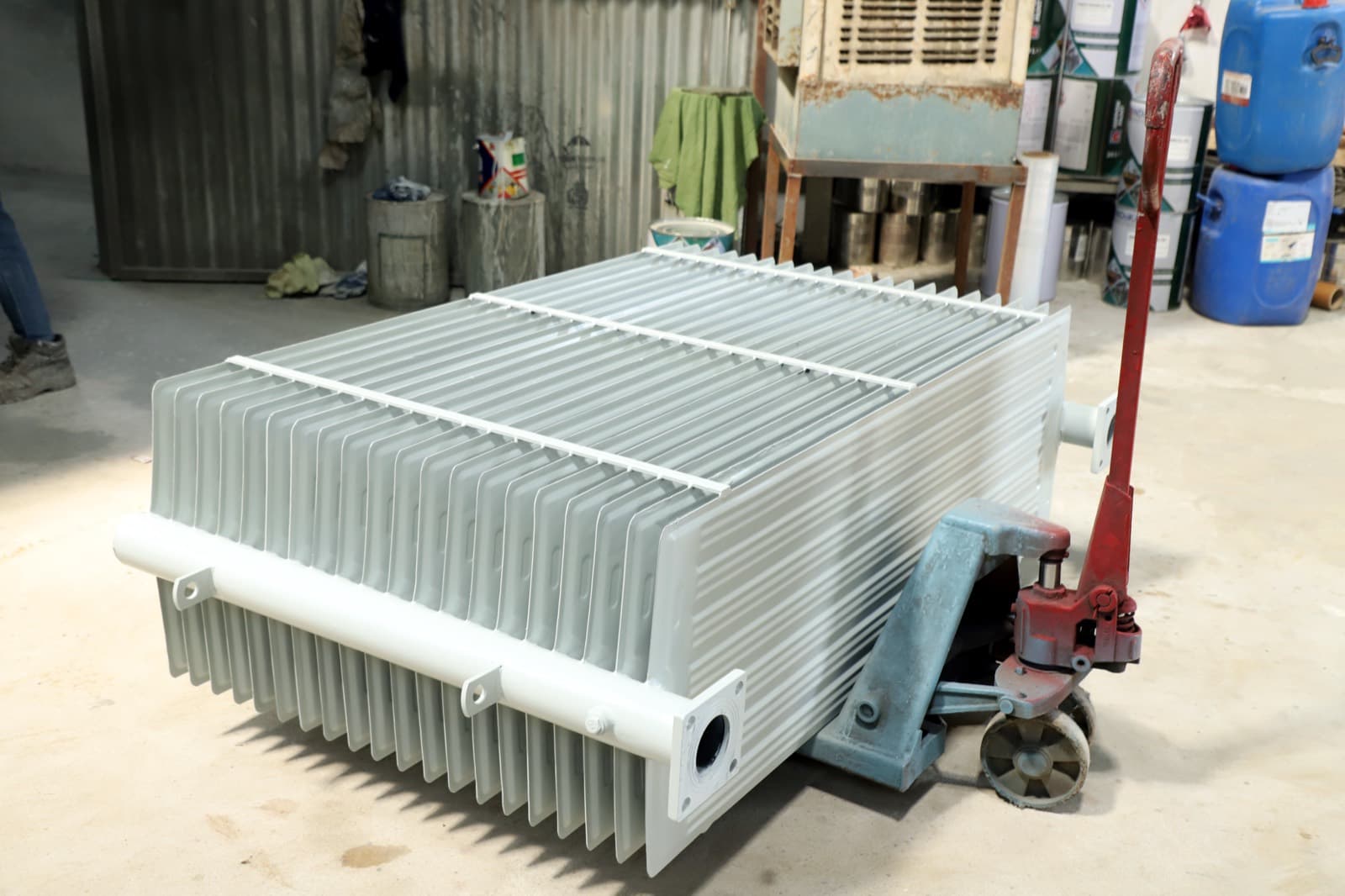

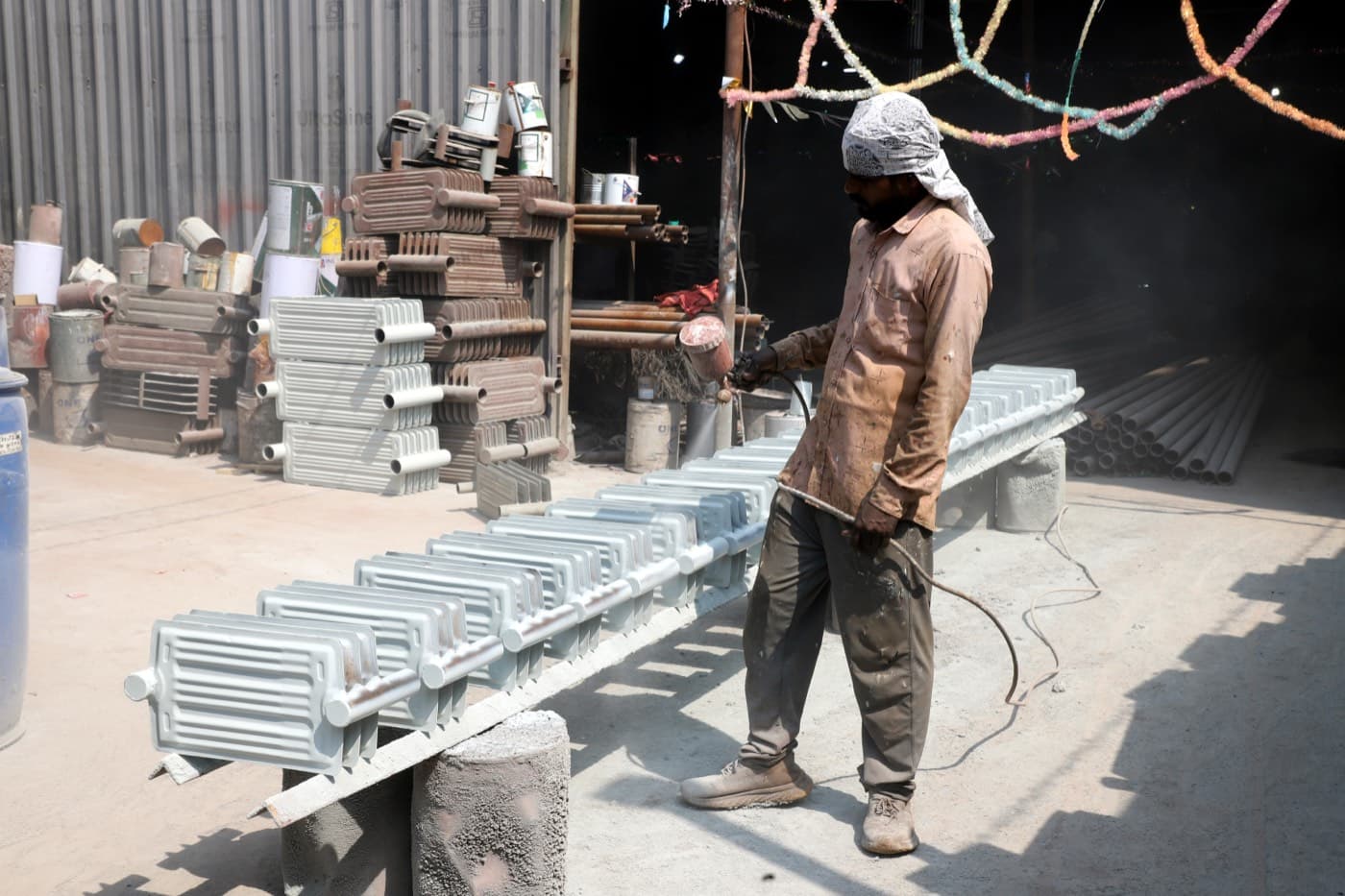

Tested units are surface-prepared and finished with a red-oxide primer followed by a top coat of paint, applied by spray.
- 09

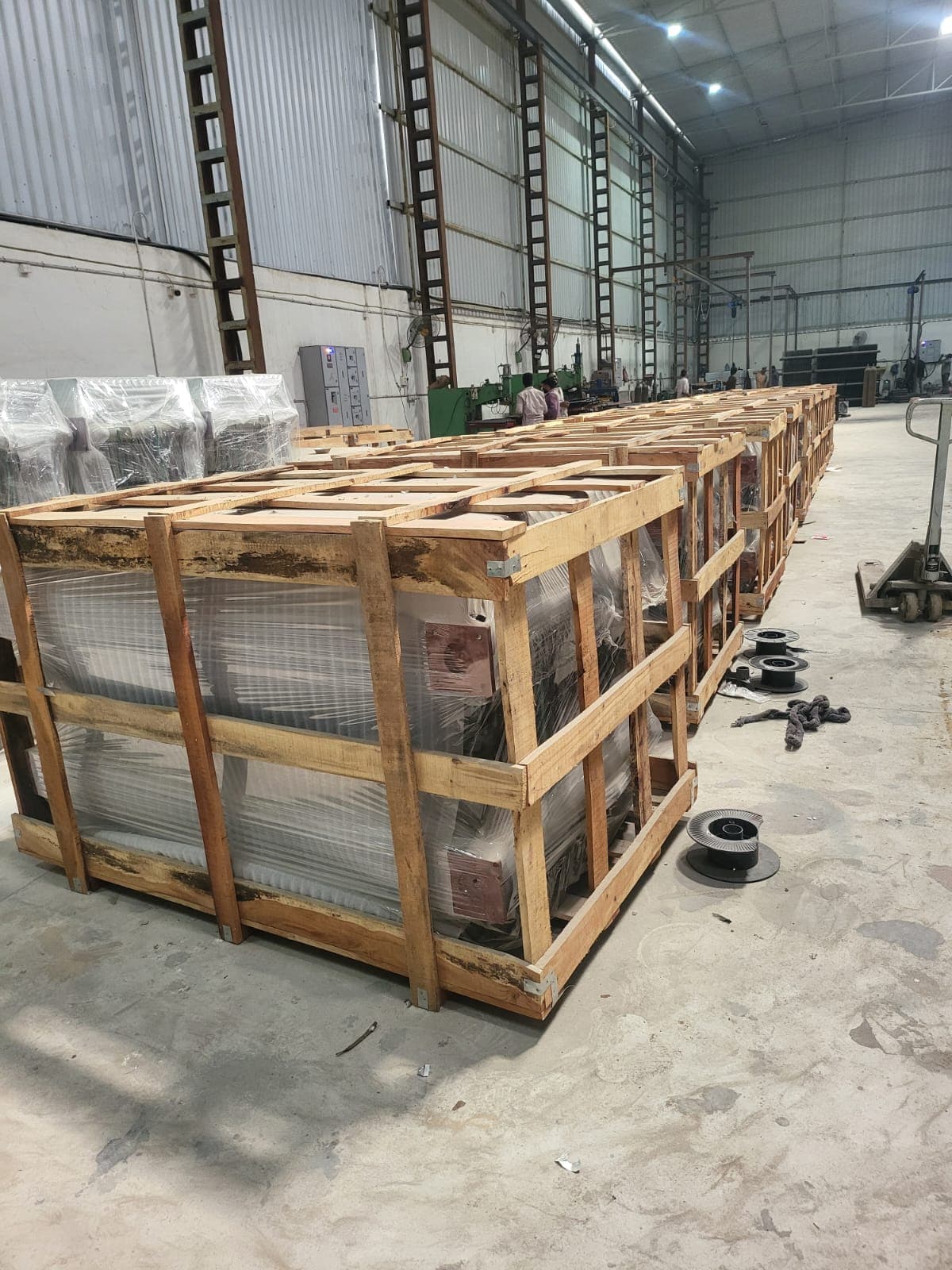

Packaging
Finished radiators are packed in wooden crates with plastic protective wrapping (packing chargeable separately) ahead of dispatch.
Technical Enquiries
Have a Drawing or Technical Requirement?
Share your drawing, dimensions, product requirements or quantity details with our team for a quotation.
Quality
Quality-Controlled Manufacturing
Every radiator passes through these checks on our factory floor before it is approved for dispatch.
Material Inspection
Incoming CRCA sheet and header pipe are checked before being released to the forming line.
Dimensional Inspection
Formed panels and headers are checked against the order drawing for panel size, OD and header length.
Welding Inspection
Panel-to-header and assembly welds are visually inspected for seam consistency before a unit proceeds to testing.
Leak / Pressure Testing

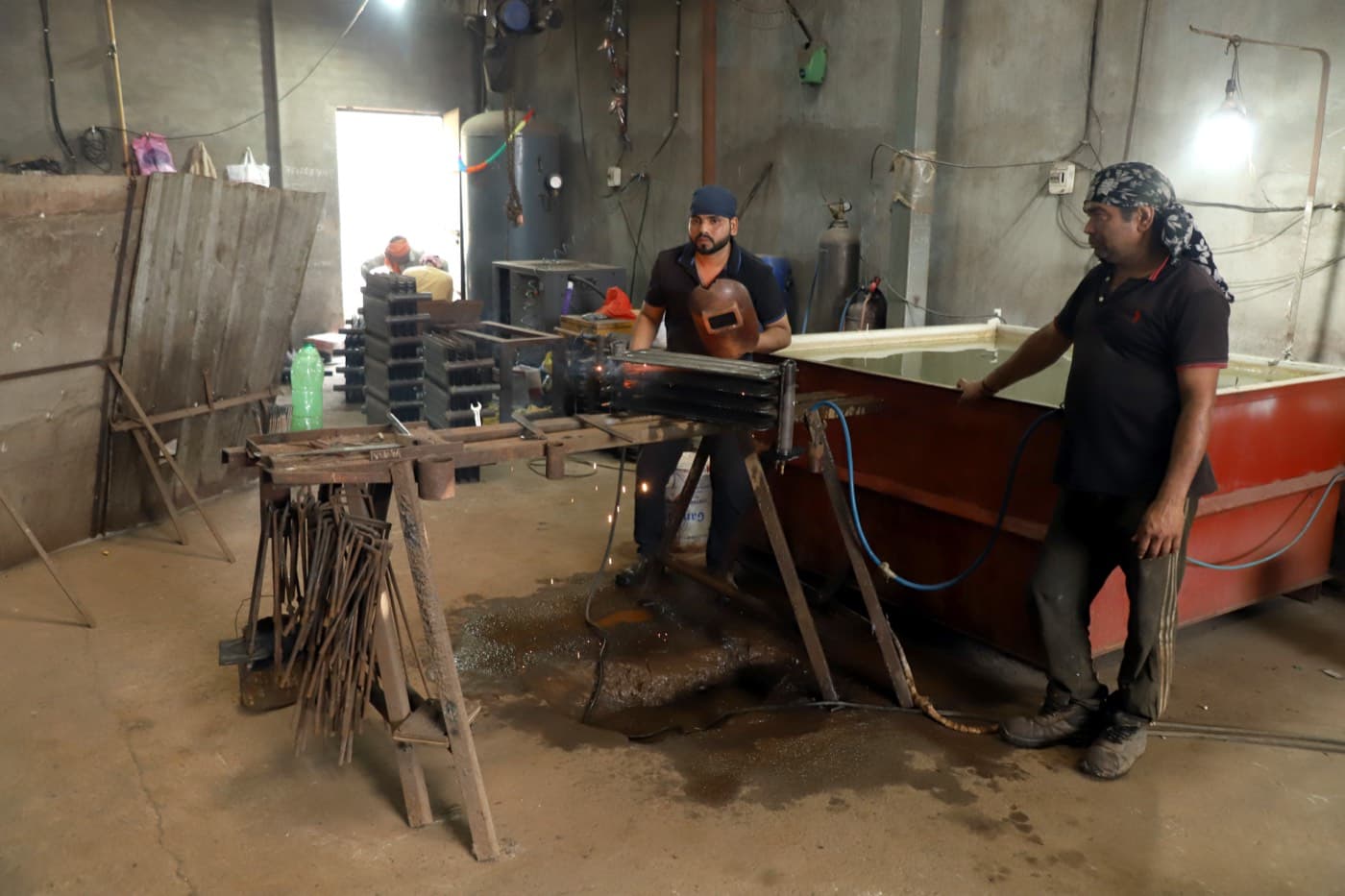

Each radiator is submerged in the test tank and pressurized with air and oil to 2.5 kg/cm² to confirm every seam holds under pressure.
Final Inspection
Painted, finished units are given a final visual check for surface finish and completeness before packing. See the Manufacturing page for packaging and dispatch details.
Certifications & Standards
Formal certifications are not yet listed — our quality process is built around pressure-testing every unit at 2.5 kg/cm² before dispatch. Contact us for test documentation on a specific order.
Industries
Sectors We Are Positioned to Serve
Sectors that buy pressed steel transformer radiators — not a claim of existing projects or named customers in each sector.
Transformer Manufacturing
Pressed steel radiators supplied as a fabricated component to transformer manufacturers and OEMs, built to the panel size, OD and header specification called for in their design drawing.
Power & Energy
Radiators and replacement radiator panels for the transformers used across power generation, transmission and distribution infrastructure.
Electrical Equipment
Fabricated radiator components and panels supplied to electrical equipment manufacturers building oil-filled transformers and similar cooled equipment.
EPC & Engineering
Radiator supply and made-to-drawing fabrication for EPC contractors and engineering firms procuring transformer components for a project.
Industrial Applications
Radiator assemblies and custom fabricated components for industrial facilities and equipment builders with oil-cooling or transformer requirements.
Infrastructure
Transformer radiators for the substations and electrical infrastructure that support power distribution networks.
Gallery
Factory & Product Gallery
