Multi-Panel Radiator Assemblies & Banks

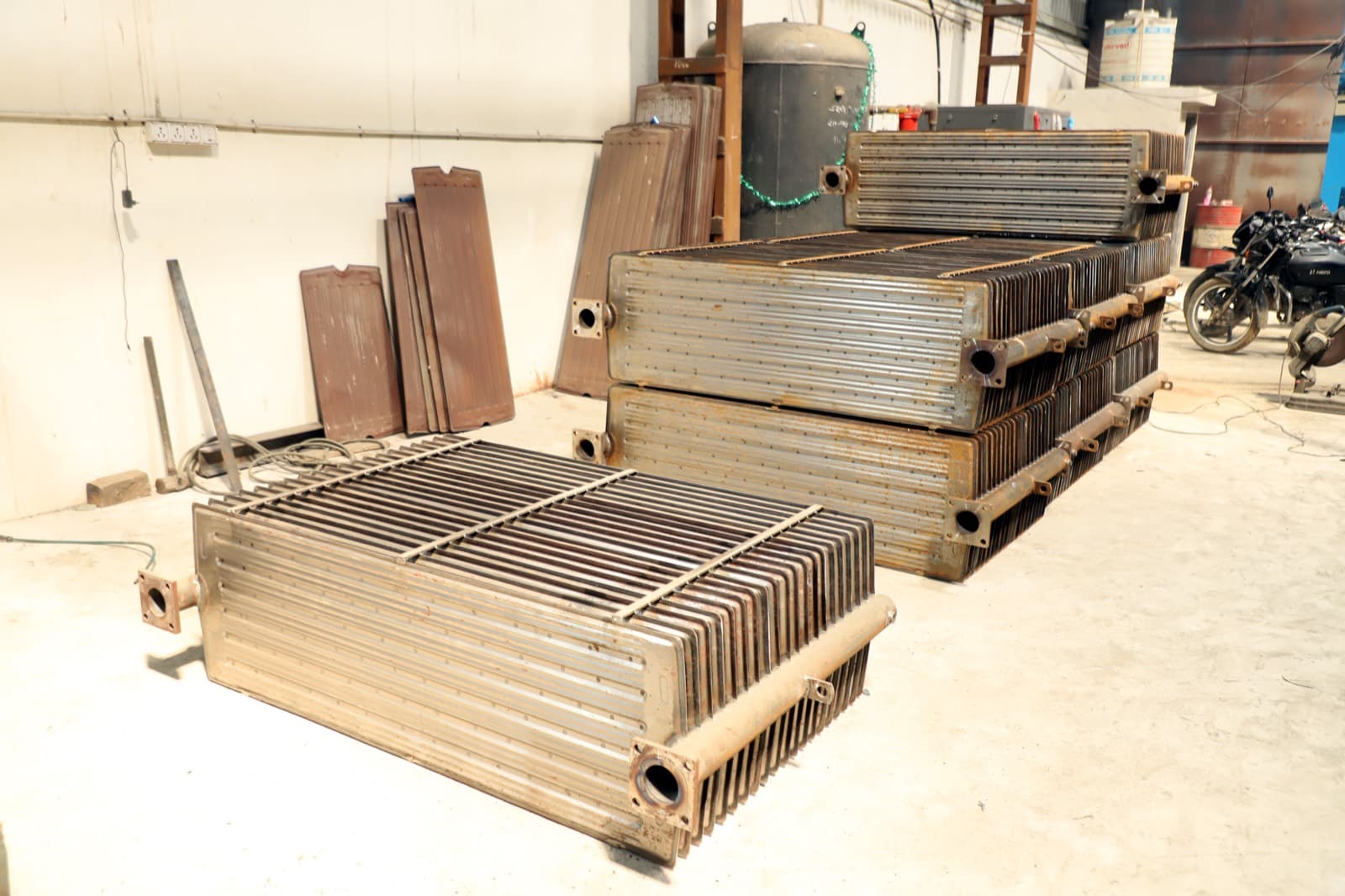

Individual panels are welded into a complete radiator assembly on a common top and bottom header, then grouped into multi-assembly banks where a transformer's cooling load calls for more surface area. Panel count and bank configuration are set per order and confirmed against the customer's drawing before fabrication.
Applications
- Cooling for oil-filled distribution and power transformers
- Replacement / retrofit radiators for transformer repair and refurbishment
- Supply to transformer manufacturers and OEMs as a fabricated component
Features
- Panel count and bank configuration built to the customer's specification
- Common header assembly across all panels in a unit
- Suited to both single-assembly radiators and larger multi-assembly banks
Technical Information
Specifications
| Construction | Pressed steel radiator (PSR), corrugated fin panels on a common header — built to order |
|---|---|
| Panel Type / OD Sizes | 48 mm OD, 58 mm OD, 75 mm OD and 90 mm OD panels |
| Panel Size Range | 227–230 mm / 300–305 mm / 525 mm (as per drawing/order) |
| Panel Material | Cold-rolled low-carbon steel (CRCA) |
| Panel Thickness | 0.8–0.9 mm |
| Header Pipe Material | Mild steel or cold-rolled low-carbon steel |
| Header Pipe Thickness | 1.5–2 mm |
| Flange Specification | 150 x 150 mm (outer-to-outer), 12 / 16 / 20 mm thickness |
| Approx. Weight | From approx. 8 kg per panel, upward as per order configuration |
| Max. Operating Pressure | 2 kg/cm² (air) |
| Test Pressure | 2.5 kg/cm² — tested with air and oil |
| Surface Finish | Red-oxide primer followed by finish paint coat |
Customization
Customization Options
Assembly panel count and bank grouping are configured per order — share your transformer's kVA/MVA rating and cooling requirement for a suitable configuration.
Manufacturing & Quality
How This Product Is Manufactured
Manufactured following our general fabrication and inspection process. See the Manufacturing and Quality pages for full process details.
