Pressed Steel Radiators (PSR)

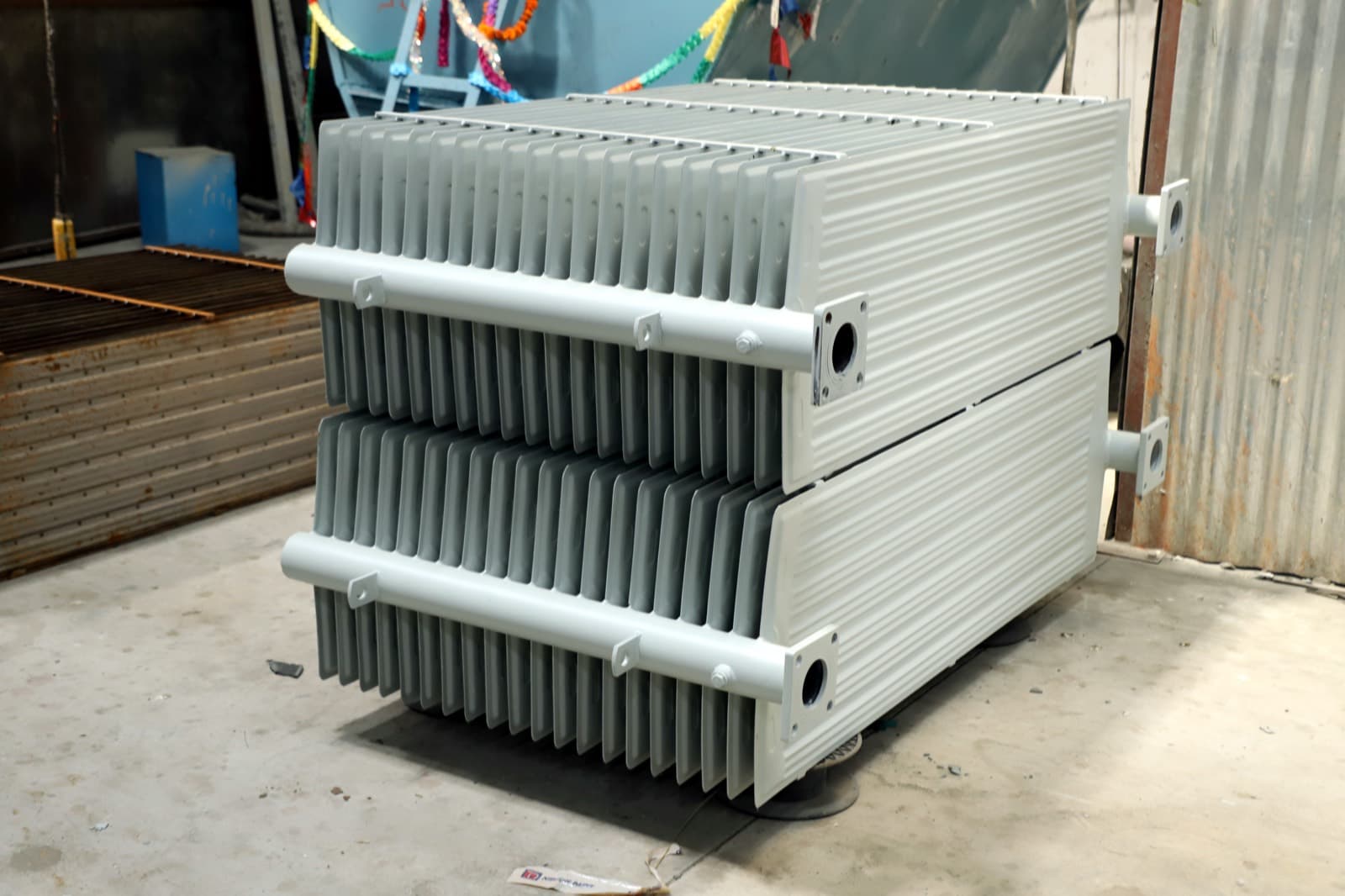

Pressed steel radiators (PSR) are our core product — the standard corrugated-panel radiator used to cool the oil in distribution and power transformers by natural or forced air circulation. Each unit is fabricated in-house from cold-rolled low-carbon steel panels formed on our spot-seam and pressing lines, welded onto mild-steel headers, and finished with a red-oxide primer and top coat. Every radiator is leak- and pressure-tested before dispatch.
Applications
- Cooling for oil-filled distribution and power transformers
- Replacement / retrofit radiators for transformer repair and refurbishment
- Supply to transformer manufacturers and OEMs as a fabricated component
Features
- Available in 48 mm, 58 mm, 75 mm and 90 mm OD panel types
- Panel sizes from 227–230 mm up to 525 mm, built to order
- CRCA steel panels, 0.8–0.9 mm thickness
- Every unit leak- and pressure-tested (2.5 kg/cm², air and oil) before dispatch
Technical Information
Specifications
| Construction | Pressed steel radiator (PSR), corrugated fin panels on a common header — built to order |
|---|---|
| Panel Type / OD Sizes | 48 mm OD, 58 mm OD, 75 mm OD and 90 mm OD panels |
| Panel Size Range | 227–230 mm / 300–305 mm / 525 mm (as per drawing/order) |
| Panel Material | Cold-rolled low-carbon steel (CRCA) |
| Panel Thickness | 0.8–0.9 mm |
| Header Pipe Material | Mild steel or cold-rolled low-carbon steel |
| Header Pipe Thickness | 1.5–2 mm |
| Flange Specification | 150 x 150 mm (outer-to-outer), 12 / 16 / 20 mm thickness |
| Approx. Weight | From approx. 8 kg per panel, upward as per order configuration |
| Max. Operating Pressure | 2 kg/cm² (air) |
| Test Pressure | 2.5 kg/cm² — tested with air and oil |
| Surface Finish | Red-oxide primer followed by finish paint coat |
Customization
Customization Options
Manufactured strictly to order — panel count, OD size, header length and flange specification are all set by the customer's drawing or stated requirement. Non-standard sizes are accommodated.
Manufacturing & Quality
How This Product Is Manufactured
Manufactured following our general fabrication and inspection process. See the Manufacturing and Quality pages for full process details.
