Radiator Panels (Individual Elements)

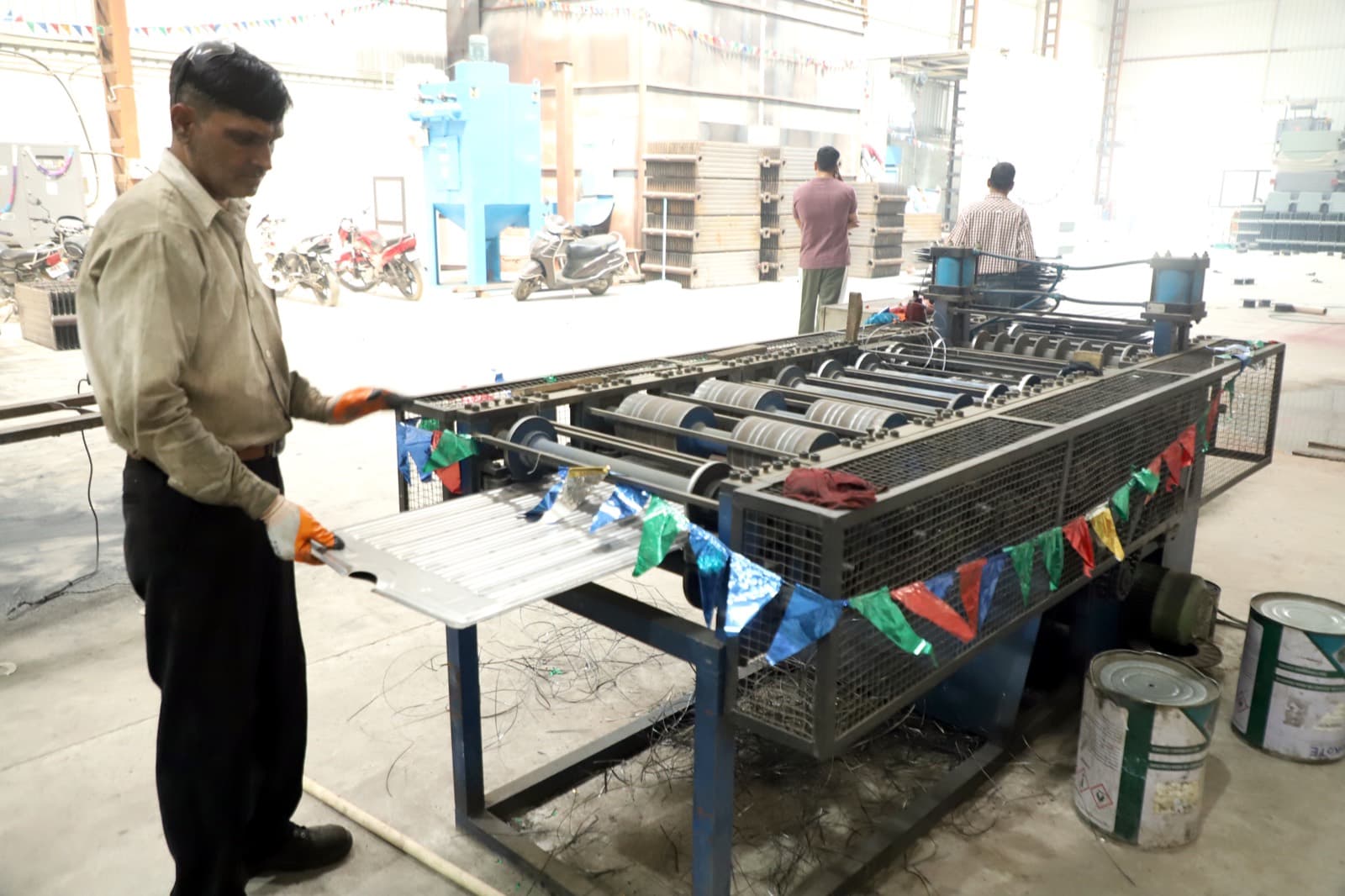

Individual pressed and corrugated radiator panels, supplied as standalone elements for customers who assemble their own radiators, or for repair and replacement of damaged panels in an existing radiator bank. Formed on our spot-seam pressing line to the same panel specifications used in our complete assemblies.
Applications
- Standalone supply for customer-side radiator assembly
- Repair / replacement of damaged panels in existing transformer radiators
- Cooling for oil-filled distribution and power transformers
- Replacement / retrofit radiators for transformer repair and refurbishment
- Supply to transformer manufacturers and OEMs as a fabricated component
Features
- 48 mm, 58 mm, 75 mm and 90 mm OD panel types
- CRCA steel, 0.8–0.9 mm panel thickness
- Consistent corrugation profile across a production run
Technical Information
Specifications
| Construction | Pressed steel radiator (PSR), corrugated fin panels on a common header — built to order |
|---|---|
| Panel Type / OD Sizes | 48 mm OD, 58 mm OD, 75 mm OD and 90 mm OD panels |
| Panel Size Range | 227–230 mm / 300–305 mm / 525 mm (as per drawing/order) |
| Panel Material | Cold-rolled low-carbon steel (CRCA) |
| Panel Thickness | 0.8–0.9 mm |
| Header Pipe Material | Mild steel or cold-rolled low-carbon steel |
| Header Pipe Thickness | 1.5–2 mm |
| Flange Specification | 150 x 150 mm (outer-to-outer), 12 / 16 / 20 mm thickness |
| Approx. Weight | From approx. 8 kg per panel, upward as per order configuration |
| Max. Operating Pressure | 2 kg/cm² (air) |
| Test Pressure | 2.5 kg/cm² — tested with air and oil |
| Surface Finish | Red-oxide primer followed by finish paint coat |
Customization
Customization Options
Panel OD size and length supplied to match your existing radiator or new-build drawing.
Manufacturing & Quality
How This Product Is Manufactured
Manufactured following our general fabrication and inspection process. See the Manufacturing and Quality pages for full process details.
