Custom / Non-Standard Transformer Radiators
Where a requirement falls outside standard panel and header sizing, we fabricate radiators to the customer's own drawing or technical specification — adjusting panel type, header length, flange arrangement and mounting to match. All types of pressed steel radiator construction are manufactured according to the order, not from a fixed catalogue.
Applications
- Cooling for oil-filled distribution and power transformers
- Replacement / retrofit radiators for transformer repair and refurbishment
- Supply to transformer manufacturers and OEMs as a fabricated component
Features
- Drawing-based manufacturing for non-standard sizes and configurations
- All four standard OD panel types available as a base, adaptable to requirement
- Header length, flange size and mounting arrangement set to the customer's drawing
Technical Information
Specifications
| Construction | Pressed steel radiator (PSR), corrugated fin panels on a common header — built to order |
|---|---|
| Panel Type / OD Sizes | 48 mm OD, 58 mm OD, 75 mm OD and 90 mm OD panels |
| Panel Size Range | 227–230 mm / 300–305 mm / 525 mm (as per drawing/order) |
| Panel Material | Cold-rolled low-carbon steel (CRCA) |
| Panel Thickness | 0.8–0.9 mm |
| Header Pipe Material | Mild steel or cold-rolled low-carbon steel |
| Header Pipe Thickness | 1.5–2 mm |
| Flange Specification | 150 x 150 mm (outer-to-outer), 12 / 16 / 20 mm thickness |
| Approx. Weight | From approx. 8 kg per panel, upward as per order configuration |
| Max. Operating Pressure | 2 kg/cm² (air) |
| Test Pressure | 2.5 kg/cm² — tested with air and oil |
| Surface Finish | Red-oxide primer followed by finish paint coat |
Customization
Customization Options
Built entirely from the dimensions and specifications submitted by the customer — share a drawing or written requirement for a feasibility check and quotation.
Manufacturing & Quality

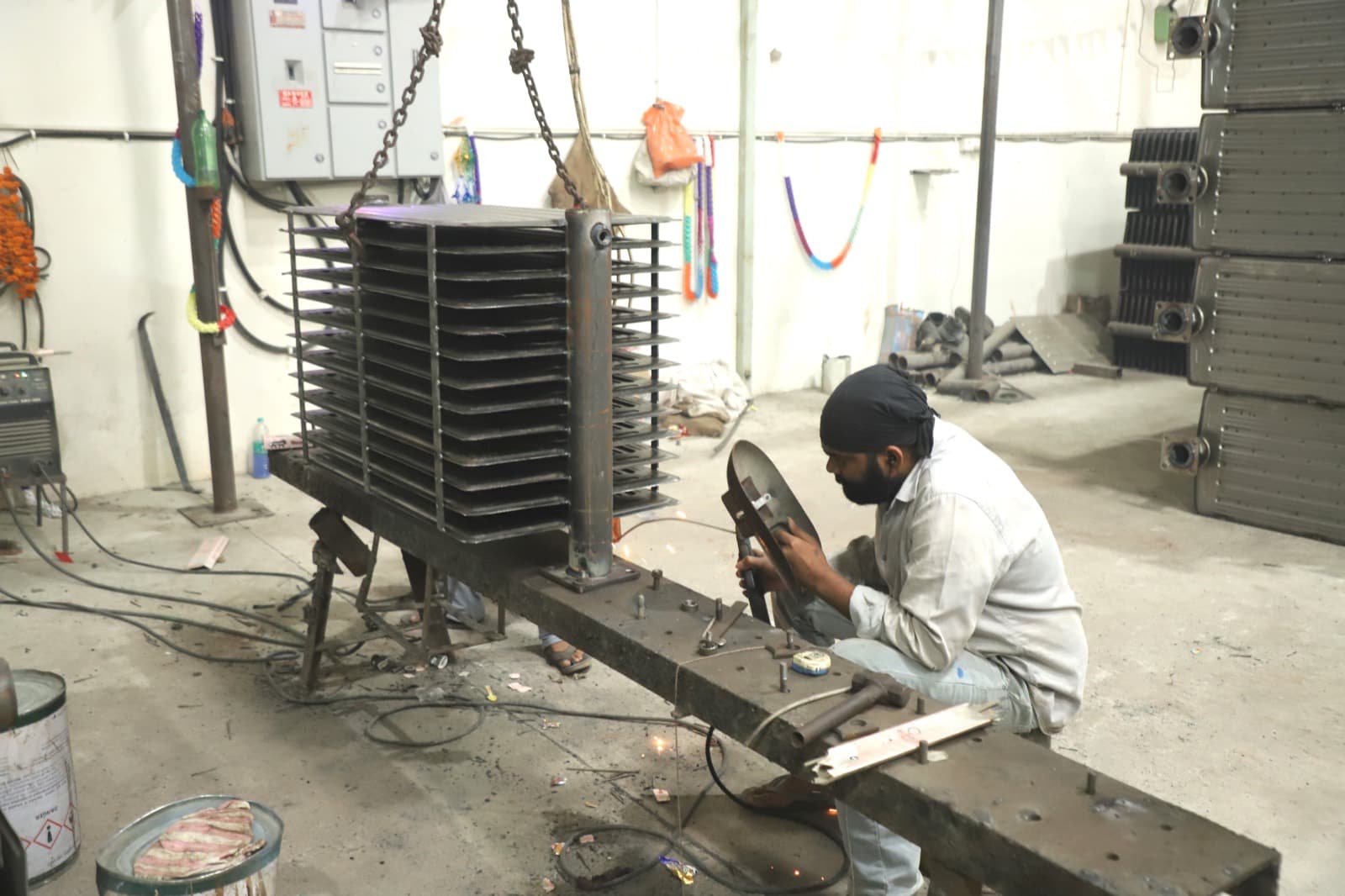

How This Product Is Manufactured
Manufactured following our general fabrication and inspection process. See the Manufacturing and Quality pages for full process details.
Technical Enquiry
Request a Quote for This Product
Share your dimensions, quantity and technical requirement — our team will respond with a quotation.
